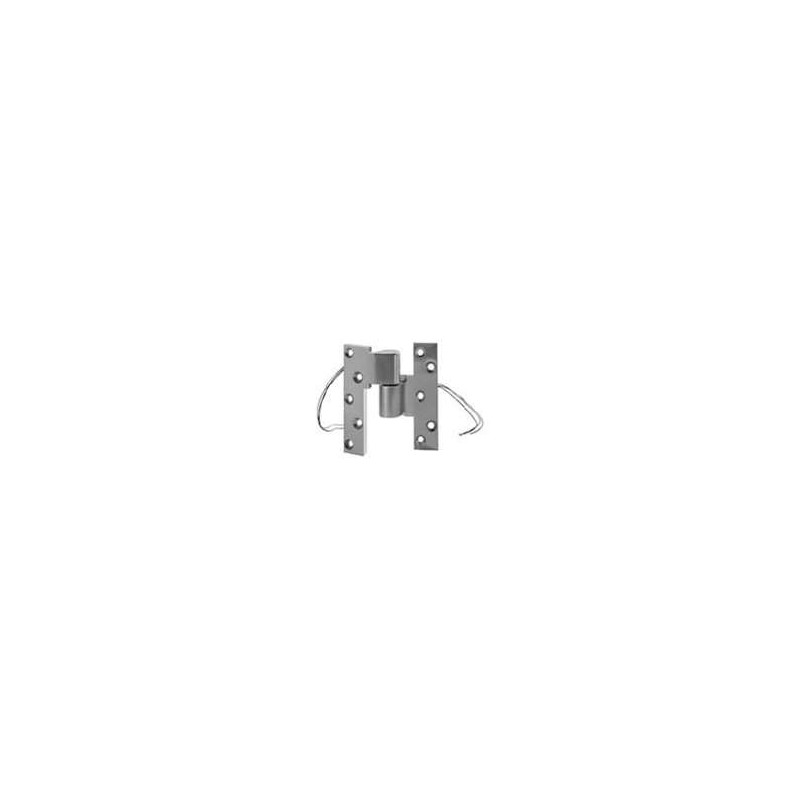

Rixson EML19 3/4" Offset Electrified Poweer Transfer Intermediate Pivot, For High Traffic 1-3/4" Doors
- Write a review
Item normally ships out within 7-10 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Details: Rixson EML19 3/4" Offset Electrified Poweer Transfer Intermediate Pivot, For High Traffic 1-3/4" Doors
The E-ML19 is an offset-hung, electrified power transfer pivot designed for heavyweight or lead-lined high-traffic doors.
Features
- Offset hung
- Electric pivot for power transfer on lead-lined or extra heavy doors
- Handed
- Not load-bearing
- Always use ML19 intermediate pivot to install door
- Door and jamb portion are factory assembled and cannot be separated
- Specify four, six, eight, or twelve wires
- ElectroLynx option available, suffix "QC#" (number of wires)
- 24-gauge wire is rated at 2 amps for low voltage, class II wiring applications
- Available for fire door assemblies (ferrous base material) - specify E-FML19
- For 20-minute label, suffix "-20" to the part number
- 3/4" (19mm) offset
- Available 1-3/4" doors only
- Door edges must be beveled in 1/8" in 2"
- Furnished with wood and machine screws
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
Downloads
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| EFML19-8689LH | 8 Wires, Left Hand |
| EFML19-4622/693RH | 4 Wires, Right Hand |
| EFML19-12689LH | 12 Wires, Left Hand |
| EFML19-4622/693LH | 4 Wires, Left Hand |
| EFML19-8690RH | 8 Wires, Right Hand |
| EFML19-4696RH | 4 Wires, Right Hand |
| EFML19-4696LH | 4 Wires, Left Hand |
| EFML19-4626/652RH | 4 Wires, Right Hand |
| EFML19-8690LH | 8 Wires, Left Hand |
| EFML19-4626/652LH | 4 Wires, Left Hand |
| EFML19-6689RH | 6 Wires, Right Hand |
| EFML19-8691RH | 8 Wires, Right Hand |
| EFML19-8691LH | 8 Wires, Left Hand |
| EFML19-6689LH | 6 Wires, Left Hand |
| EFML19-6690RH | 6 Wires, Right Hand |
