Reduced price! Rixson Q510 Shallow Depth Offset Hung Floor Closers (Parallel To Frame)

View larger

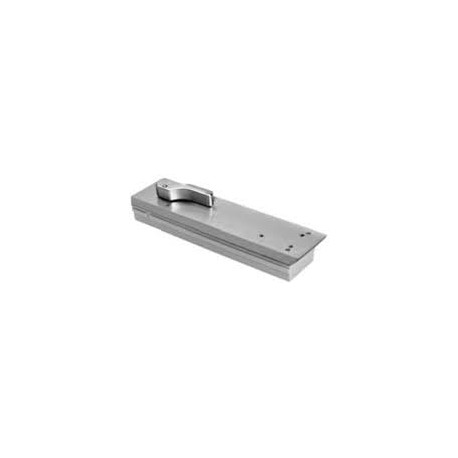

Rixson Q51 3/4" Offset Hung Quick Install Shallow Depth Floor Closer, Single Acting

Model:

Write a review

Item normally ships out within 7-10 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Rixson Q51 3/4" Offset Hung Quick Install Shallow Depth Floor Closer, Single Acting

The Q51 is a 3/4" offset-hung, shallow-depth floor closer designed for 1 3/4" door installation for interior doors weighing up to 250lbs.

Features

Single acting, handed
Interior doors
180 top pivot included
One M19 intermediate pivot included (closer cannot be ordered without the intermediate pivot)
Specify spring size 3, 4, or 5 when ordering
Doors will swing 5° beyond hold open point
Available non-hold open (NBC) or automatic hold open (ABC); specify 90° or 105°
Mortise arm with thru bolt attachment
Separate independent valves for closing speed, latch speed, and backcheck
Vertical door adjustment
Interchangeable spindle adapters
Extended spindles available in 1/2" increments up to 2" longer than standard
Doors up to 90" (2286mm) in height should use one intermediate pivot (included) - each additional 30" (762mm) warrants another intermediate pivot
Door width up to 4' 0" (1219mm)
Door weight up to 250lbs.

Benefits

Aesthetically appealing way to support and control the door
Constructed with robust materials and internal components
Concealment in-floor provides vandal resistance
Multiple valves provide enhanced control
Ideal for upper levels of multi-story buildings due to shallow depth design
Weight of door is supported by floor closer
Surface attached bottom arm allows closer removal without demounting door
Increased depth of cement case for easy closer removal

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Specifications

Closer Type: Floor
Maximum Door Weight: 250 lbs
Certifications: Certain models UL Listed (F prefix)

Downloads

Rixson Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
Q5104105-RH-NBC-BSP	Right Hand,
Q5104105-RH-NBC-WSP	Right Hand, White Suede Powder Coat
Q5104105-RH-ABC-605	Right Hand,
Q5104105-RH-ABC-606	Right Hand,
Q5104105-RH-ABC-611	Right Hand,
Q5104105-RH-ABC-612	Right Hand,
Q5104105-RH-ABC-613	Right Hand,
Q5104105-RH-ABC-613E	Right Hand, Dark Oxidized Satin Bronze
Q5104105-RH-ABC-618	Right Hand,
Q5104105-RH-ABC-619	Right Hand,
Q5104105-RH-ABC-622	Right Hand,
Q5104105-RH-ABC-625	Right Hand,
Q5104105-RH-ABC-626	Right Hand,
Q5104105-RH-ABC-BSP	Right Hand,
Q5104105-RH-ABC-WSP	Right Hand, White Suede Powder Coat
