Reduced price! Sargent 7300 Multi-Point Lock w/ Studio Collection Lever, Wooster, Grant Park Lever & Rose

View larger

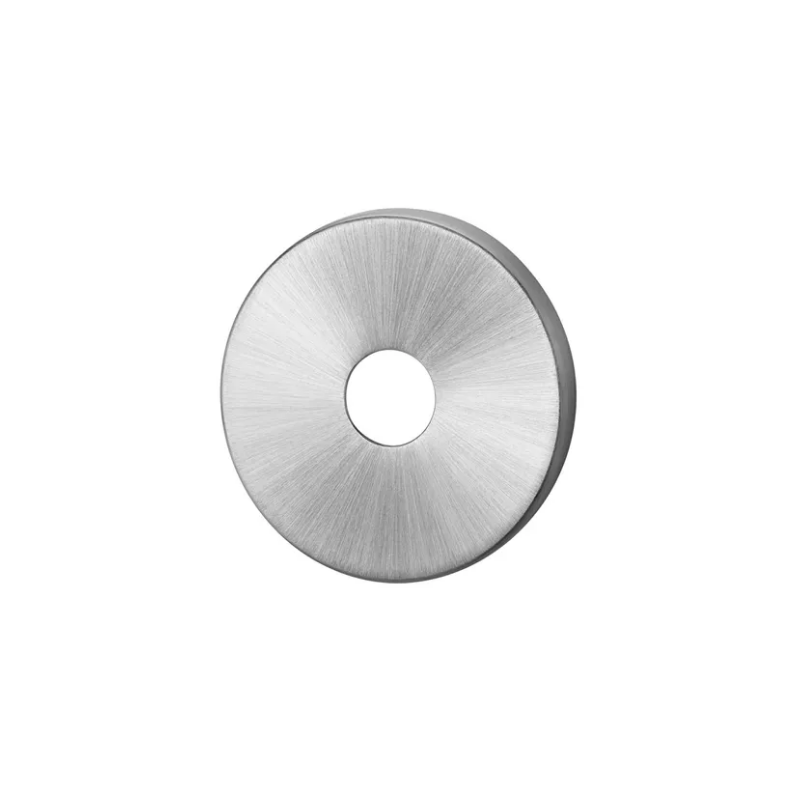

Sargent 7300 Multi-Point Lock w/ Studio Collection Lever, Wooster, Grant Park Lever & Rose

Model:

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$3,523.57

40% Off

$5,872.61

Quantity

Tactile Warning Option

Deadbolt Monitoring

Extra Large Thumbturn

MicroShield-Antimicrobial Powder Coat

Choose a Finish

Function

Rose

Lever Option

Voltage

Handing

Keying

Details: Sargent 7300 Multi-Point Lock w/ Studio Collection Lever, Wooster, Grant Park Lever & Rose

Features

Utilizes standard 8200 Series mortise lock, offering a full range of mechanical and electromechanical functions and options
Three latch points project automatically; Fourth latch point with a single motion
Dogging option allows device to operate as standard mortise lock with a single latch point for everyday use.
Available for single and double door applications, in multiple sizes
Fully Integrated as a complete ASSA ABLOY solution utilizing Ceco Door and Curries doors and frames and McKinney hinges
Concealed vertical rods for additional security. Assembly (rods, latches and cassette) pre-installed in door
Available with Studio Collection levers and optional MicroShield antimicrobial coating
Robust Design: Utilizes proven 8200 Series mortise lock, heavy-duty steel components, and four latching points
Peace of Mind: Indicator option provides visual confirmation of security
Easy Operation: Vertical latch dogging feature available for easier daily use; top and bottom rods are adjustable from the center case while the door is hung
Flexible: Multiple functions available including classroom, electrified and access control applications
Quicker Installation: Reversible strikes make installation easier and accommodate variability in opening and floor conditions
Aesthetically Pleasing: Sectional trim with wide variety of decorative levers, rose and trim combinations

Specifications

Door: 1-3/4" thick door only; 7300 Series requires utilizing Ceco Door Medallion and Curries 747 doors and frames and McKINNEY hinges
Mounting: Supplied fasteners are for metal doors with through-bolts for trim
Hand: Handed; specify RHR, LHR, RH or LH
Lockbody: Utilizes standard 8200 Series mortise lock
Top Bolt: Adjustable stainless steel 3/4" square bolt with 11/16" engagement; 5/16" steel reinforcement plate
Bottom Bolt: Adjustable stainless steel 3/4" square bolt with 5/8" engagement; 1/4" steel reinforcement plate
Center Bolts: Latchbolt is stainless steel with 3/4" projection. One piece, anti-friction reversible catch. Deadbolt is one piece hardened stainless steel with 1" projection
Lock Front: 1/8" steel mortise front reinforced with 13/64" thick lock edge stiffener
Center Bolt: Strike 1/4" thick stainless steel
Backset: Lever: 2-3/4" standard; Rods 5-1/4"
Door Thickness: 1-3/4" standard
Maximum Opening: Single door 2'8" x 6'8" up to 4'0" x 10'0" and double doors 5'4" x 6'8" up to 8'0" x 10'0" (Double doors require 2-988 surface bolts)
UL Fire Listed: UL 3-hour fire rating
Trim: Multiple sectional mortise trim with Studio Collection levers

Applications

Bank safes
Electronic product storage
Prescription medicine storage
Marijuana dispensaries
Museums
