  6. Sargent AD7000 Surface Vertical Rod Lock For Aluminum Door w/ Gramercy Lever

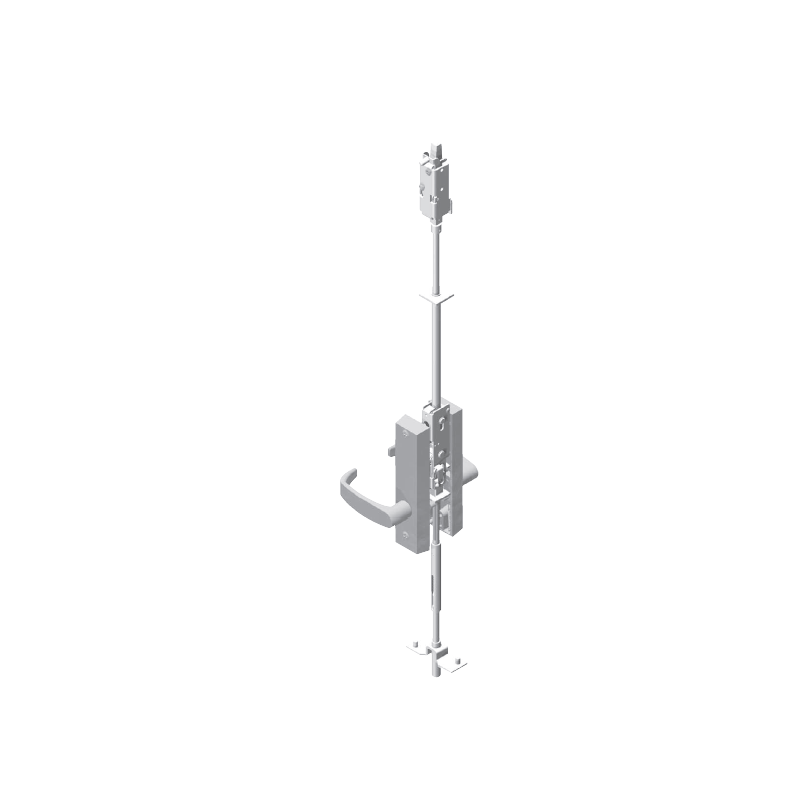

Reduced price! Sargent AD7000 Surface Vertical Rod For Aluminum Door w/ Gramercy, Wooster Square And Grant Park Lever View larger

Sargent

Previous Next

Sargent AD7000 Surface Vertical Rod Lock For Aluminum Door w/ Gramercy Lever

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2,409.61

40% Off

$4,016.02

?

Details: Sargent AD7000 Surface Vertical Rod Lock For Aluminum Door w/ Gramercy Lever

Eliminating the need for automatic flushbolts and coordinators, the 7000 Series multi-point concealed vertical rod lock provides flexibility, simplicity, strength, durability, aesthetics and innovation, making it perfect for a wide variety of applications where exit devices are not required. Heavy-duty construction gives the 7000 series the strength and durability to withstand abusive, high-traffic environments like commercial office buildings, convention centers, educational, and healthcare facilities.

Features

  • Designed for aluminum door applications
  • Concealed rods offer additional security
  • Less bottom rod option available, specified as NB-AD 7000
  • NB- provides free access for wheel chairs and carts
  • Single or double door applications

Specifications

For Doors
Aluminum doors, 1-3/4" (44mm) door thickness standard, 2-3/4" minimum stile for single doors, 2-1/2" minimum stile for double doors, 7/8" backset standard for double doors, 1-1/8" backset for single doors
Mounting
Supplied fasteners are for metal doors with through-bolts for trim
Hand
Field reversible; specify RHR, LHR, RH or LH
Top and Bottom Bolts
Stainless steel. Top and bottom bolt travels 7/16" (11mm) Projection adjustable up to 1" (25mm)
Latching
Top and bottom (AD 7000) or Top only (NB-AD 7000)
Trim
ET, ER & ES Controls are available with all lever designs. 100 Series Auxiliary Control offer cylinder override for 01, 10, 40, 73 & 74 function devices
Functions
01, 06, 10, 13, 15, 16 40, 43, 46 Freewheeling 73, 74, Electrical+
Strikes
640 Top and Bottom Strike, 639 Top Strike only, standard
Cylinder
#41 Mortise Cylinder

Application

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

How to Install SARGENT 7000 Series Multi-Point Lock

How to Install SARGENT 7000 Series Multi-Point Lock with ELR
