Reduced price! Schlage L Series Mortise Lock W/ M Collection Lever & Rose Trim, Non-Keyed Functions

View larger

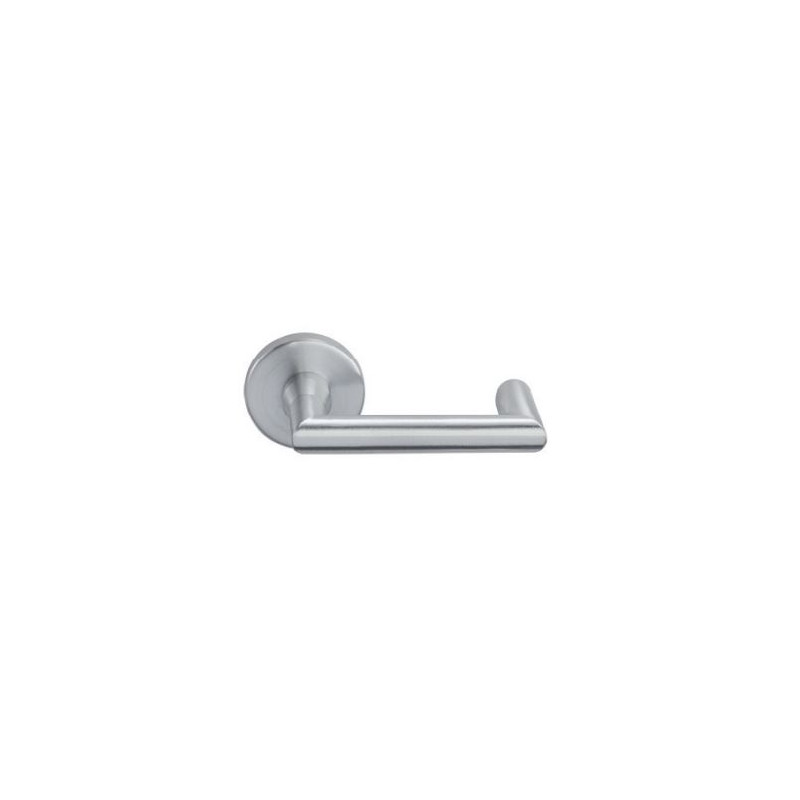

Schlage L Series Grade 1 Mortise Lock W/ M-Collection Lever & Rose Trim, Non-Keyed Functions

Model:

Write a review

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$942.22

30% Off

$1,346.03

Quantity

Lock Type

Function

Lever Design

Trim Option

Choose a Finish

Handing

Strike

Request to Exit

Latchbolt Monitor

Door Position Sensor

Outside Door Indicator

Inside Door Indicator

Screw Type

Buy America Act

Details: Schlage L Series Grade 1 Mortise Lock W/ M-Collection Lever & Rose Trim, Non-Keyed Functions

Designed for security, beauty, and flexibility, L Series features the most comprehensive list of functional, design, and trim options Schlage has to offer. Able to withstand the rigors of daily use without fail, these locks will stand the test of time and can serve the needs of all opening types.You can use L Series as part of a common aesthetic. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or campus. L Series does all this while lowering the total cost of ownership through maintenance ease, key system flexibility and beautiful finishes that are made to last.

Schlage is committed to helping ensure safer classrooms and better privacy solutions with a family of lock status indicator trims. The large windows and 180-degree visibility of L Series indication trim lets you Know It's Locked even from across the room ensuring classroom, security, and privacy needs are met.

Features

Tested and certified to ANSI/BHMA Grade 1 operational and security standards
UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
Door thickness: 1-3/4" (44 mm) standard
Deadbolt features include anti-saw pin in bolt to prevent cut-through
Security blocking hub prevents lock access by removing levers
Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
Lever styles constructed of solid brass or solid stainless steel offer a strong-yet-comfortable feel
12 available finishes (depending on lever style) with options for antimicrobial coating
Locking lever bushing eliminates exposed screws on inside levers
180-degree visibility indicator trim option for locked/unlocked status available for most functions. Available in both A style sectional and N style escutcheon designs
Lock status indication trim option uses red and white backgrounds to ensure quick readability for color blind individuals
Two piece anti-friction tongue in latch bolt reduces wear
Breakaway spindle keeps door secured in the event of vandalism
Field reversible latch bolt allows handing change without opening case
Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 operational and security
Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
UL 10C and CAN/ULC-S104 listed 3-hour fire door (except L9076 and L9077)
All levers with a return to door of 1/2" (64 mm) or less comply (formerly Title 19, California State Fire Marshal Standard)
Miami-Dade NOA and Florida Building Commission listings
Texas Department of Insurance (TDI) for impact and non-impact applications
Meets BAA (Buy American Act)

Specifications

Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
Case size: 4-7/16" × 6-1/16" × 1" (113 mm × 154 mm × 25 mm)
Spacing: knob or lever to cylinder 3-7/8" (98 mm); knob or lever to thumbturn hub 2-11/16" (68 mm)
Door thickness: 1-3/4" (44 mm) standard

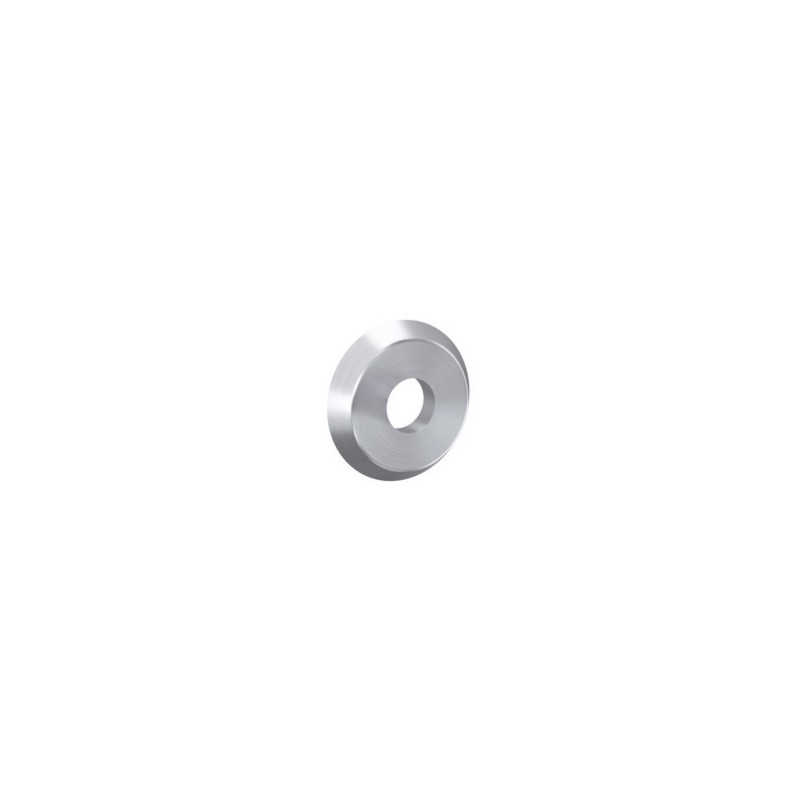

Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm) , C 2-5/8" (67 mm) - wrought brass and stainless steel
Backset: 2-3/4" (70 mm) only
Armor: Standard - 1-1/4" × 8" × 7/32" (32 mm × 203 mm × 6 mm)
Deadbolt: 1" (25 mm) throw stainless steel
Latch: 3/4" (19 mm) throw stainless steel with anti-friction tongue
Strike: ANSI curved lip strike 1-1/4" × 4-7/8" (32 mm × 124 mm) standard; dust box included
Strike lip length: 1-3/16" (30 mm)

Applications

Commercial Real Estate
Healthcare
School & Educational Facilities
Retail

Downloads

Videos

Schlage Commercial Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
L0172-M56-A-622	Standard, Full Dummy Trim, Matte Black,
L9010-M51-C-629	Standard, Bright Stainless Steel,
L9010-M52-A-629	Standard, Bright Stainless Steel,
L9010-M52-C-629	Standard, Bright Stainless Steel,
L9010-M53-C-606	Standard, Satin Brass,
LV9444-ME3-B-606	Vandlgard, Privacy with deadbolt & coin turn outside, Satin Brass,
LV9044-M62-C-630 RH	Vandlgard, Privacy with coin turn outside, Satin Stainless Steel, Right Handed
L9110 XL11-741-ME2-A-605 RH	Standard, Bright Brass, Right Handed
L9010-M63-B-606 RH	Standard, Satin Brass, Right Handed
L9010-M63-B-625 RH	Standard, Bright Chrome, Right Handed
L9110 XL11-741-ME3-A-622	Standard, Matte Black,
LV9090EL-M54-B-630	Vandlgard, Satin Stainless Steel,
L0172-M83-A-629	Standard, Full Dummy Trim, Bright Stainless Steel,
L9010-M84-C-622	Standard, Matte Black,
LV9090EL-M57-C-629	Vandlgard, Bright Stainless Steel,
