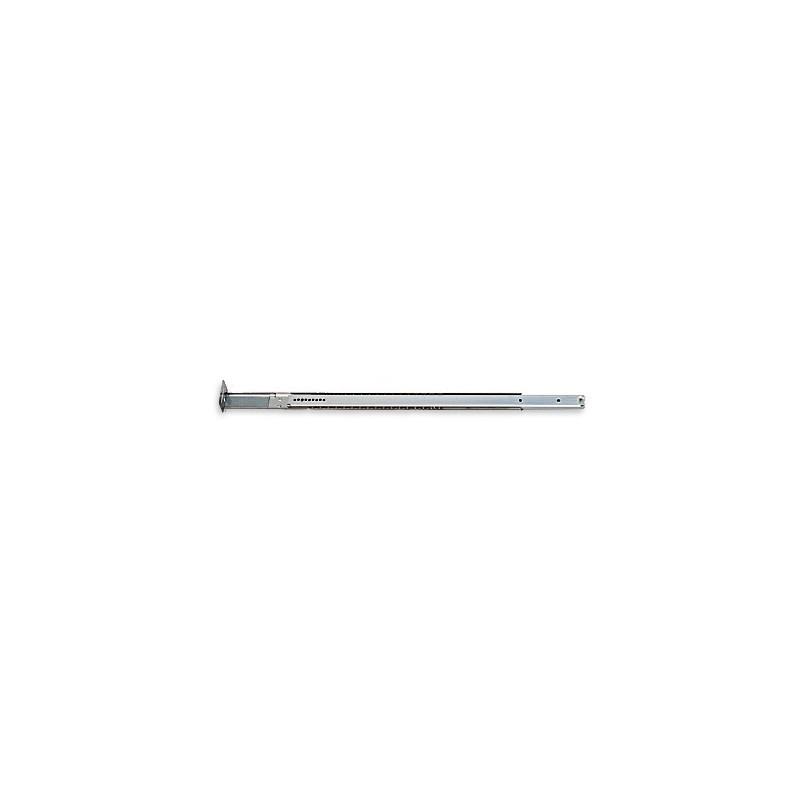

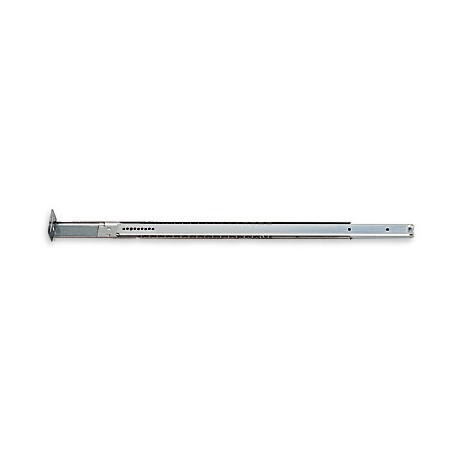

Sugatsune ESR-2 3/4 Extension Slide View larger

Sugatsune

Sugatsune ESR-2 S/S Drawer Slide

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$42.40

Details: Sugatsune ESR-2 S/S Drawer Slide

Features

  • Under carriage mounting with bracket
  • 3/4 extension
  • Front disconnect
  • Friction brake stop
  • Mount with M4 or 8 Binding, Pan, or Truss head screws
  • Two plastic tacks supplied per slide.

Specifications

Material
304 Stainless Steel
Weight of Item (g)
340
Length or Depth of Item when closed (in)
12.75
Length or Depth of Item when open (in)
21.25
Height of Item (in)
1.3125
Width of Item (in)
1.9375
Load Capacity (lbs/pr)
18
Slide Length (in)
12.75
Travel Length (in)
8.5
Profile Width (in)
0.375
Profile Height (in)
1.5
Mounting Type
Under Mount
Extension Type
3/4 Extension Undermount Slide
Front Disconnect
Y
Friction Brake Stop
Y
Non-Handed
Y
Are Fasteners Required
Y
Fasteners Type
Binding Head M4 or 8,Pan Head M4 or 8,Truss Head M4 or 8
Is RoHS Compliant
RoHS3

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
ESR-2-12
ESR-2-14
ESR-2-16
ESR-2-18
ESR-2-20
ESR-2-22
ESR-2-24
ESR-2-26
