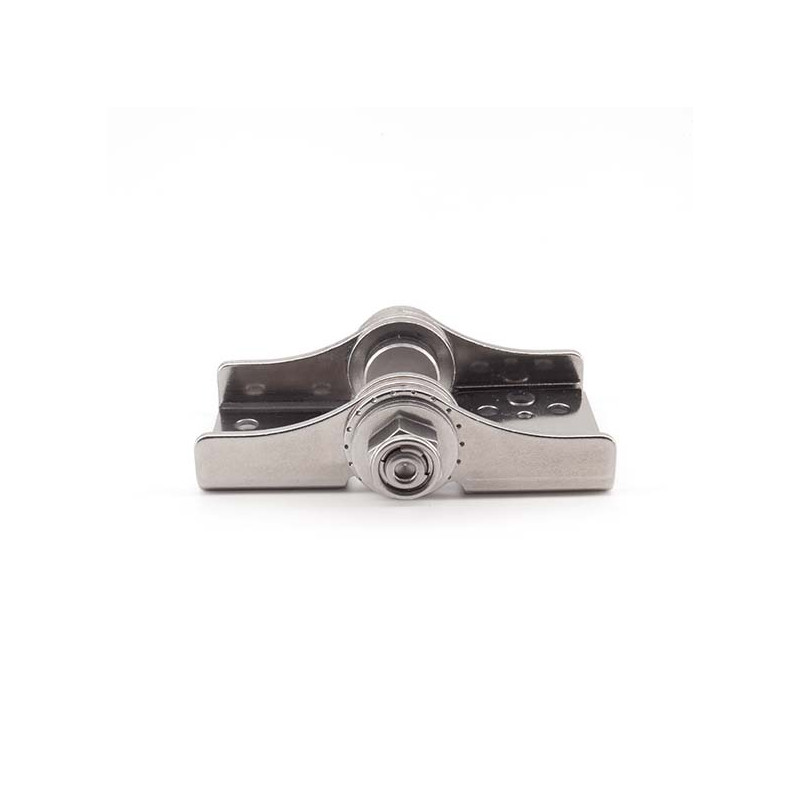

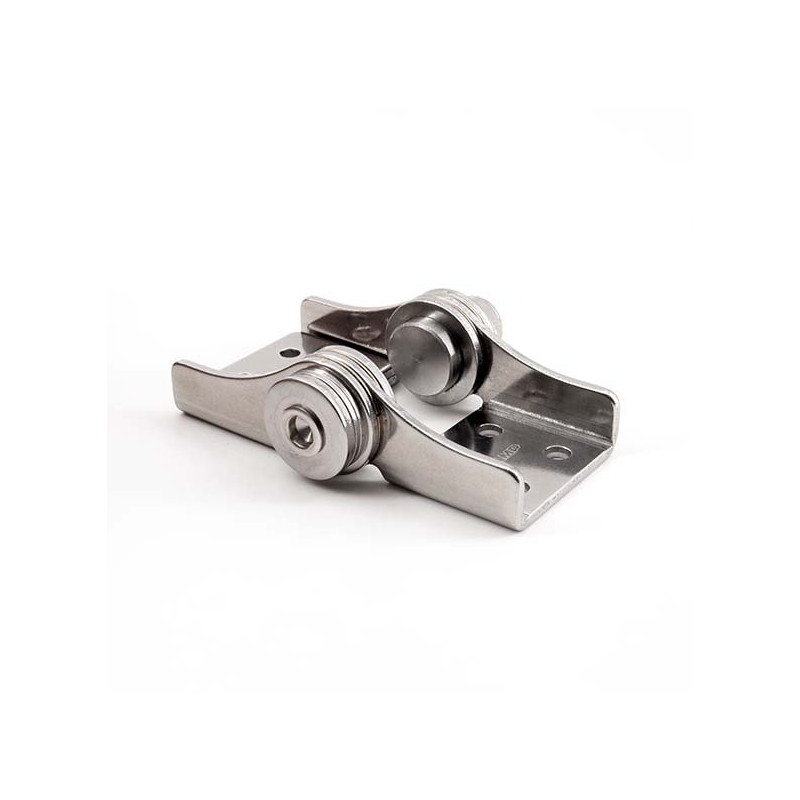

Sugatsune HG-ITJ4080 Cabinet Torque Hinge, Adjustable

HG-ITJ4080

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$90.20

Details: Sugatsune HG-ITJ4080 Cabinet Torque Hinge, Adjustable

Features

  • Torque strength is adjustable
  • Hinge with friction torque holds lid/door in desired position
  • High torque in a small profile
  • 35.6 lbs. in. +/- 20% minimum torque

Specifications

Bracket
430 Stainless Steel
Plate
430 Stainless Steel
Shaft
Stainless Steel
Washer
Phosphor Bronze
Holes
8
Damper Torque (lbs-inch)
35.6 to 71.2

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
