Sugatsune J160-D22-25T Specialty Overlay Hinge W/ Soft Close

View larger

Sugatsune J160-D22-25T Cabinet Specialty Overlay Hinge W/ Soft Close

Model:

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sugatsune J160-D22-25T Cabinet Specialty Overlay Hinge W/ Soft Close

Our specialty soft-close overlay hinge (J160-D22-25T), from our collection of European-style concealed cup hinges, offers 21-25 mm of overlay (with a bore distance of 8 mm). It is a wide angle hinge with 160 degrees of opening range and features a built-in damper for premium soft-close performance.

Together with its low profile, this makes for a clean, unobtrusive hinge that suits most decor types.

The J160 heavy-duty hinge is designed for premium durability and excellent performance, offering value both to the developer and the end-user.

Note: So long as the red holding pin is in place, do not open or close the hinge.

Features

This wide door hinge is recommended for door thicknesses of 18-36 mm.
The hinge damper delivers a soft close even if operated roughly.
The J160 offers 3-way adjustability to give you fine control over the door position.
This hinge is rated for 50,000+ open/close cycles, making it ideal as a pantry door hinge or any application that requires frequent use.

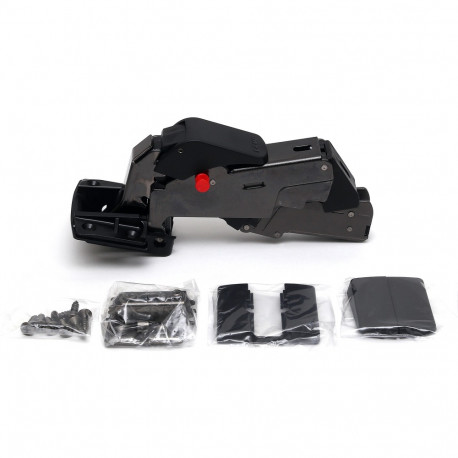

The J160 includes all necessary hardware including mounting plate, screw covers, and a red holding pin for hinge installation.

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Retail & Strip Malls
Multifamily & Mixed-Use
