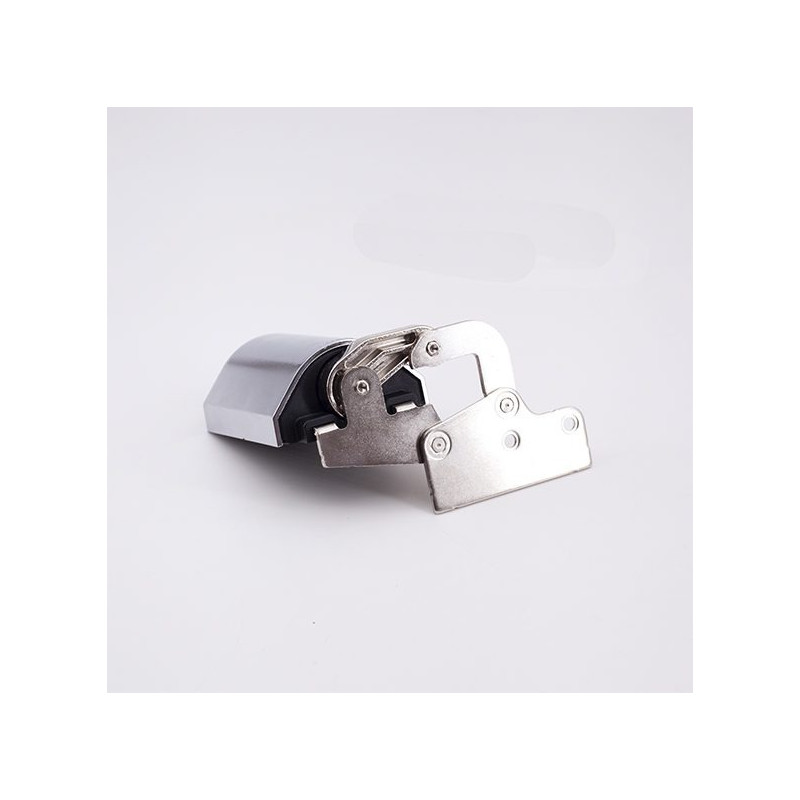

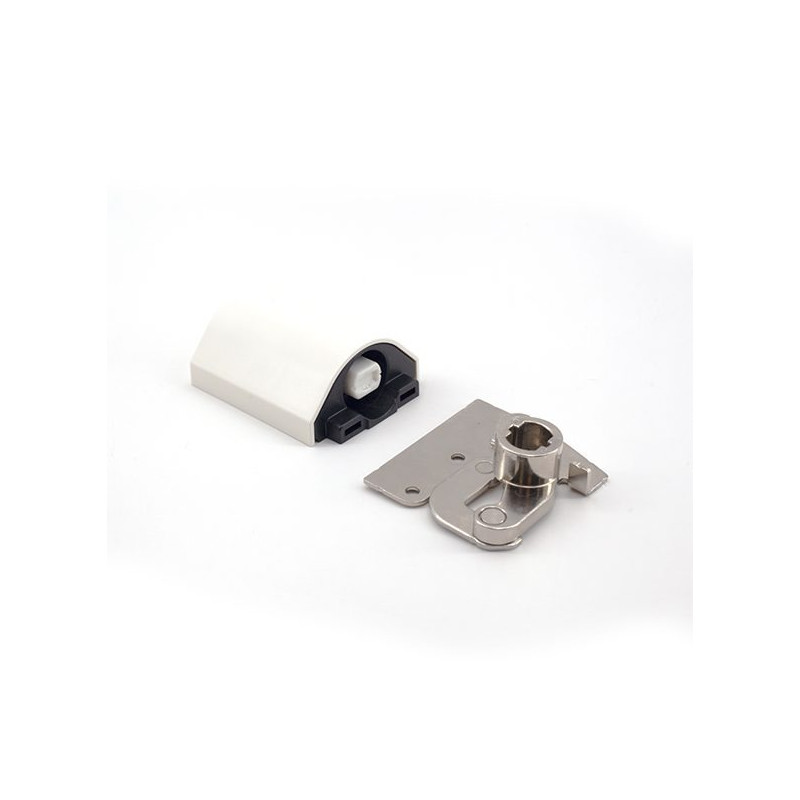

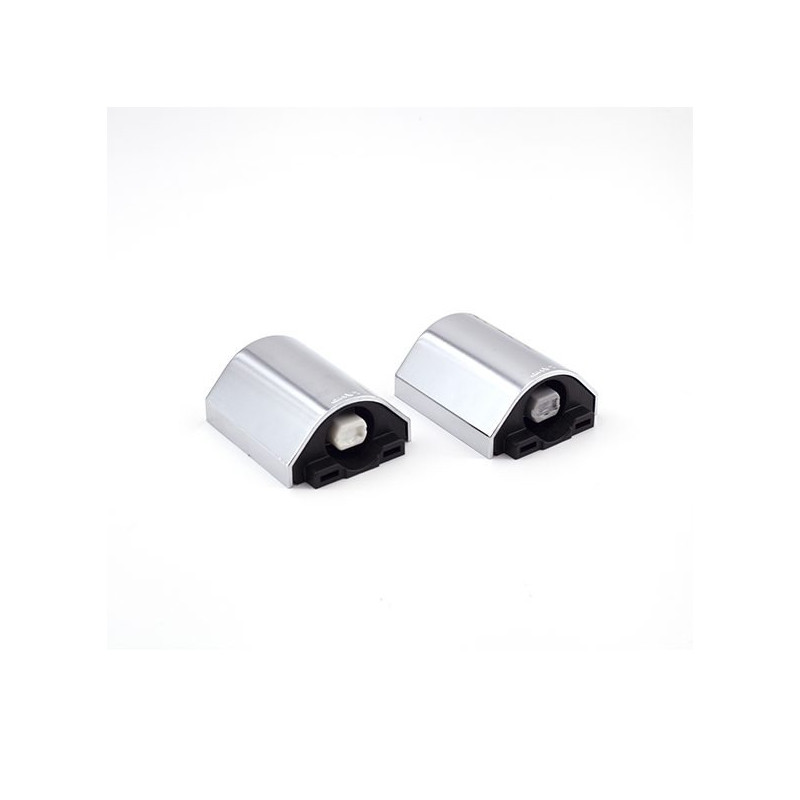

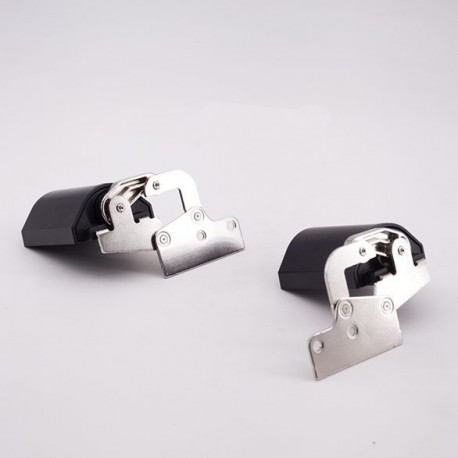

Sugatsune HG-JHM20T Soft Close Dampening Hinge

View larger

Sugatsune HG-JHM20T Cabinet Damper Hinge Surface Mount

Model:

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sugatsune HG-JHM20T Cabinet Damper Hinge Surface Mount

Features

Easy to install without the need of recessing.
Hinge with built-in UDH damper.
Soft-close and smooth-open features
For Inset Lid
Cover hides mounting screws
Sold in pairs
Below torque range is the value when using a pair of hinges (left and right) per lid.
When installing, ensure that both hinge shafts are levelled and aligned.
Damper mechanism engages after being opened at 60 degree or more.

Specifications

Material: Polyacetal
Weight of Item (g): 317
Length or Depth of Item when closed (in): 1
Height of Item (in): 2.5
Width of Item (in): 2.5625
Max. Panel Thickness (in): 0.8125
Min. Panel Thickness (in): 0.625
Min. Torque (lbs-in/pr): 53.244
Mounting Type: Surface Mount
Max. Opening Angle (degree): 115
Are Fasteners Included: Y
Are Fasteners Required: Y
Fasteners Size: 3.5 X 14, 3.5 X 20 mm
Fasteners Type: Self tapping screw
Is RoHS Compliant: RoHS 3

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
