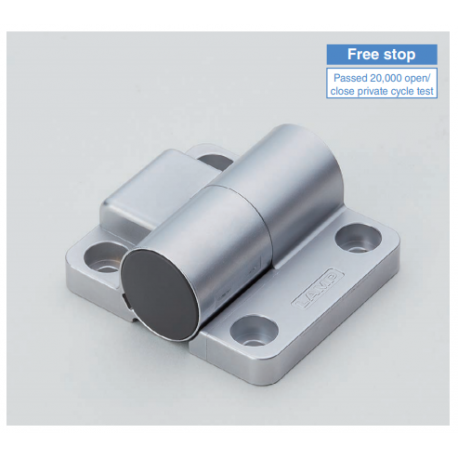

Sugatsune HG-TQJ100 Adjustable One Way Torque Hinge

View larger

Sugatsune HG-TQJ100 Cabinet Adjustable One Way Torque Hinge, Finish-Silver

Model:

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sugatsune HG-TQJ100 Cabinet Adjustable One Way Torque Hinge, Finish-Silver

Features

Friction in one direction only: Allows for frictionless handling of thedoor in the opposite direction.
Torque adjustable from 0 to 10N·m.
High torque type with max. torque up to 10N·m.
Two types (friction in opening direction and in closing direction)available.
Torque is stable.
Cover attached to torque adjustment part for clean appearance.

Remarks

Be sure to read the "Cautions".
Use all mounting holes.
When installing, ensure that both hinge shafts are levelled and aligned.
Do not remove the torque adjustment screw.

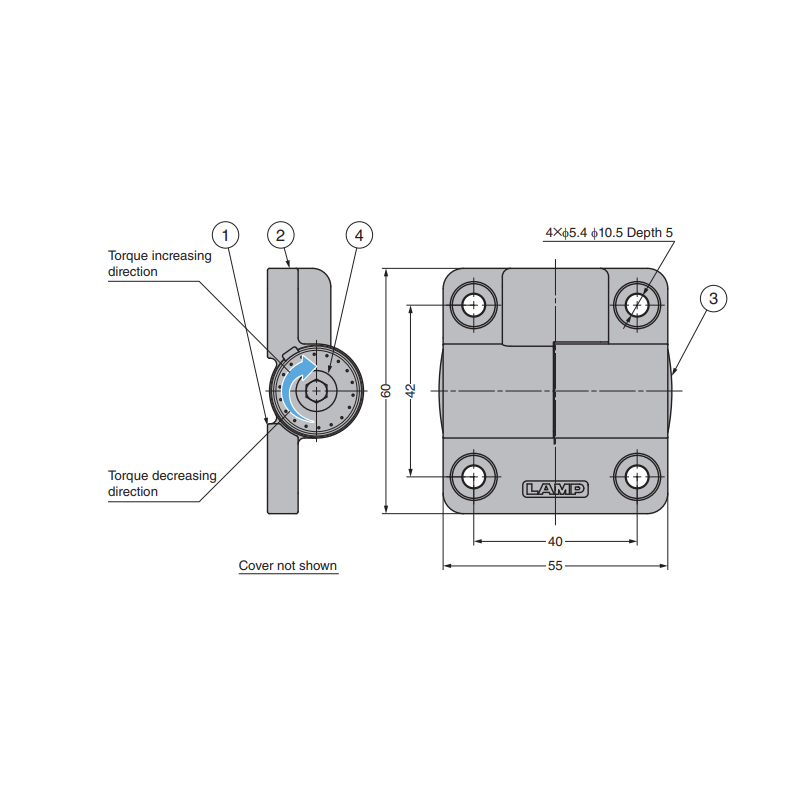

Use a hex key (nominal size 5) for torque adjustment.
Readjust the torque moment when it lowers.
Be sure to fix the slit on the opposite shaft when turning the torque adjustment nut.
