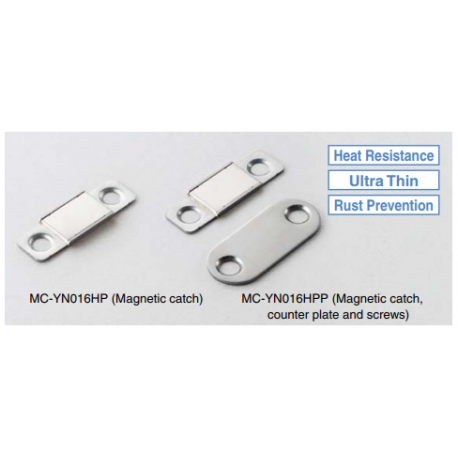

Sugatsune MC-YN016HPP Ultra Thin Magnetic Catch & Counter Plate w/ Screws

View larger

Sugatsune MC-YN016HPP Ultra Thin Stainless Steel Magnetic Catch

Model:

Write a review

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sugatsune MC-YN016HPP Ultra Thin Stainless Steel Magnetic Catch

Features

Suitable for high temperature environments up to 250℃ .
Anti rust: made of stainless steel.
Ultra thin magnetic catch of 2.8mm thick ideal for tight spaces.
Small body with strong magnetic force (samarium cobalt magnet).
Magnetic catch only or set including magnetic catch, counter plate and screws available.
Installation with rivet is also possible.
Non-heat resistance type MC-YN015S of the same shape also available.

Remarks

Be sure to read the "Cautions" .
The counter plate should be in contact with the yokes on both sides and should not be in contact directly with the cover. Direct contact may break the magnet.
Be sure to chamfer the mounting surface for screws and rivets. In this way, screw head will not project when the body is fixed (refer to "Cut Out Dimensions and Installation Example In the Pictures").
