Surelock McGill ZE3C Zeus High-Performance Multi-Point Lock

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2,707.88

10% Off

$3,008.76

Details: Surelock McGill ZE3C Zeus High-Performance Multi-Point Lock

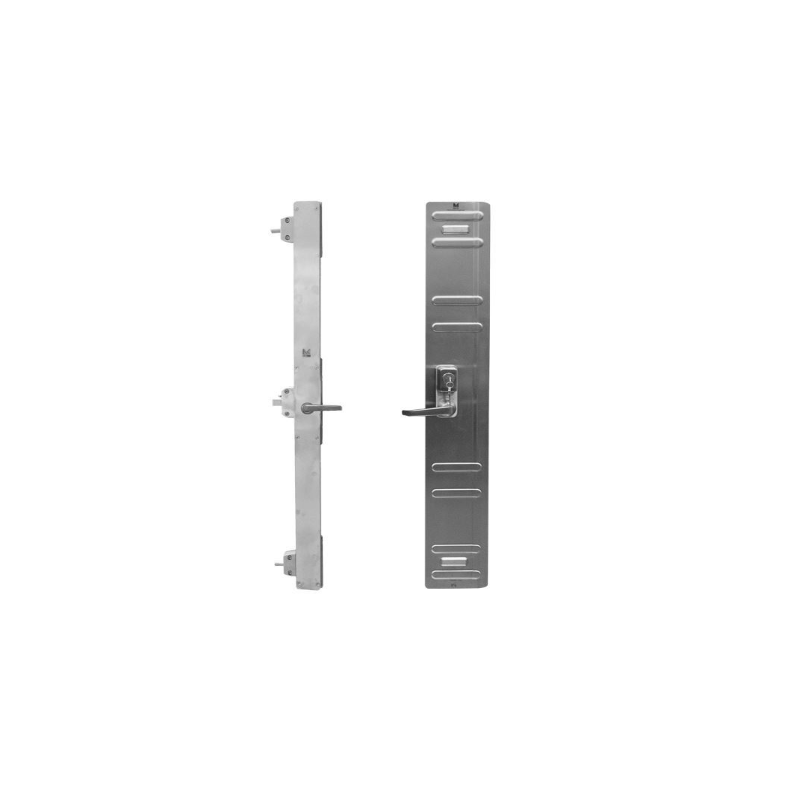

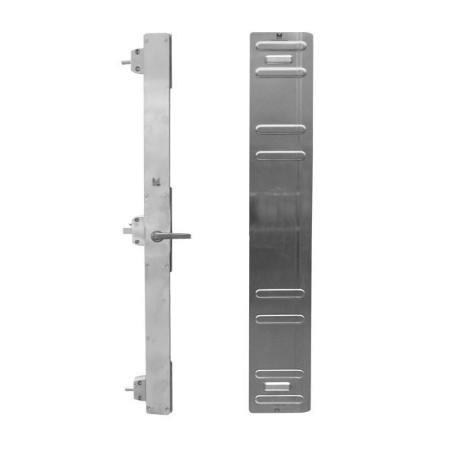

The MICO Zeus is a surface mounted, secure five-point bolting system designed especially for commercial hollow metal doors. Three stainless steel bolts secure horizontally into the frame, while two surface mounted hinge bolts offer additional strength onto the opposite side of the door. Single motion egress by lever or panic bar makes this system a preferred choice on emergency escape routes, while optional lockable trim provides external entry for authorized personnel. The stainless steel construction and robust design of the MICO Zeus will protect your facility and employees for years. This device can easily be installed onto existing doors using a through-bolt method allowing for easy replacement of other inferior or damaged bolting systems without replacing the door

Operations

Entry

  • Optional entry features can be granted through the use of an MLK key lockable trim, allowing the user to retract the bolts and open the door from the outside.

Exit

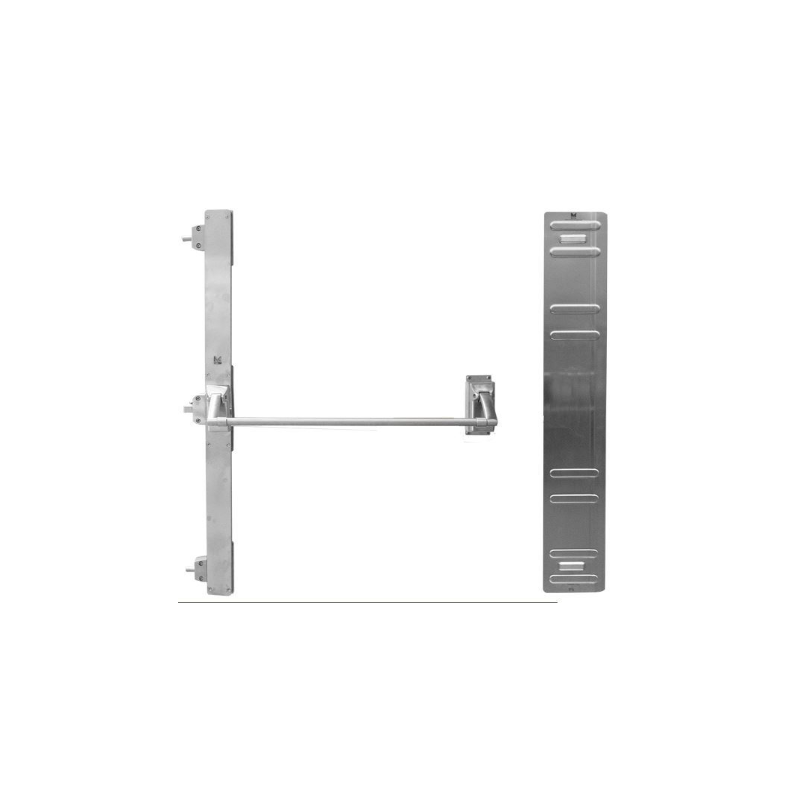

  • Single motion egress can be provided by a panic bar or lever handle that retracts the bolts and allows the user to open the door.

Features

  • Automatic bolting upon door closure
  • 3/4" × 5/8" center bolt
  • 9/16" round top and bottom bolts
  • All bolts have 1" throw
  • 2 Surface Mounted Hinge Bolts
  • Strikes and mounting hardware provided
  • Panic bar or lever handle exit options
  • External trim available
  • Fully 304 stainless steel construction on lock
  • Unhanded and Bi-directional, making specification easy
  • Unique Infinite restraint.
  • Certified Life-safety device under UL305
  • Heavy duty astragal as standard

Benefits

  • Simple and quick installation
  • Straightforward upgrade of external doors
  • Always provides single motion egress in an emergency
  • Door automatically secured against physical attack
  • Cost-effective locking solution
  • Restraint holds bolts in open position throughout door swing, ensuring they do not release until the door has closed
  • Engineered for durability and trouble free service

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls

Downloads

Data Sheet

Mico Zeus by Surelock McGill Installation
