Topgreener TDHOS5-W, In-Wall PIR and Humidity Sensor Switch, Fan and Light Control - White

Model: TDHOS5-W

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Topgreener TDHOS5-W, In-Wall PIR and Humidity Sensor Switch, Fan and Light Control - White

In-Wall Humidity Sensor and Motion Sensor Dual Control Fan/Light Switch

To keep your home's humidity at the right level, you can rely on the TDHOS5. The TDHOS5 is a dual tech humidity and passive infrared motion sensor switch for separate fan and light control, as well as a bathroom fan timer wall switch. This motion sensor switch can make your home more convenient, giving you the fullest control over your home.

The TDHOS5 is equipped with both a PIR and humidity sensor. This sophisticated system takes care of managing two of the most common issues in high-humidity areas: fan use and lighting. Rather than having separate controls for each, the TDHOS5 automates both in a single unit. Also, the TDHOS5 includes a range of smart features that save you time and hassle, ultimately delivering long-term value for your property.

Features

Combines humidity and passive infrared (PIR) sensors.
For separate or simultaneous bathroom fan and light control.
Humidity sensor turns fan ON automatically with high humidity and turns it OFF when humidity drops.
PIR sensor detects motion to control lights.
Adjustable settings and different mode options.
Up to 600sq ft. coverage, 180 degree field of view.
120VAC; Incandescent: 500W; LED: 150W; Motor: 3A.

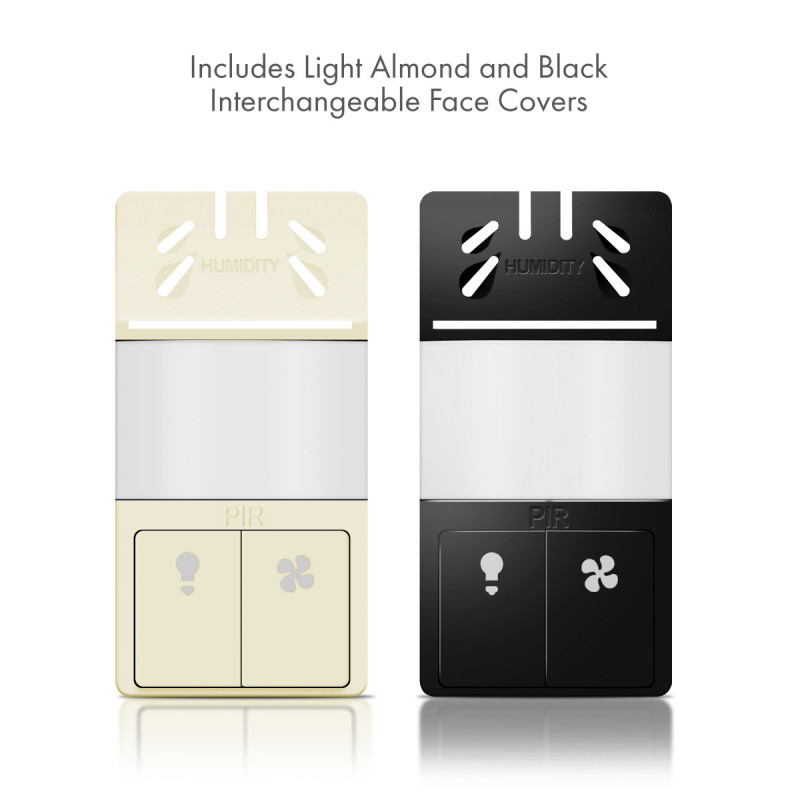

Wall plate and interchangeable face covers included (white-attached, black, light almond).
UL listed, dual load, single-pole only, neutral wire required

Specifications

Sensor Technolgy: PIR Passive Infrared and Humitity Sensor
Coverage: 600 sq. ft. at 180 degree field of view, Humidity Set Point
Power Rating: 120VAC 60Hz
Time Delay: 10, 20, 30 minutes
Motor: 1/4HP (3-AMP) fan
Special Features: Dual Technology Sensor
Wiring: Single Pole, Neutral Wire Required, Two Separate Loads Required
Compatibility: Incandescent, fluorescent, halogen, and LED lighting
Certifications & Compliance: Complies w/ California Title 24, UL Listed

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Topgreener Warranty
