  6. Topgreener TDOS5-J-W, In-Wall PIR Occupancy/Vacancy Motion Sensor Switch, No Neutral Wire Required - White

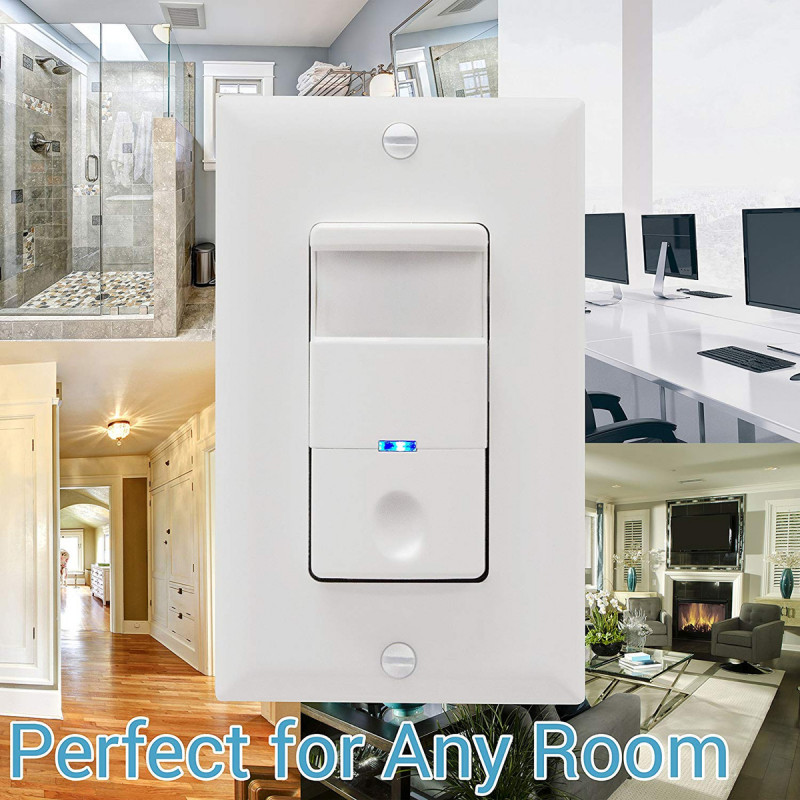

Topgreener TDOS5-J-W, In-Wall PIR Occupancy/Vacancy Motion Sensor Switch, No Neutral Wire Required - White View larger

Topgreener

Previous Next

Topgreener TDOS5-J-W, In-Wall PIR Occupancy/Vacancy Motion Sensor Switch, No Neutral Wire Required - White

TDOS5-J-W

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$42.89

Details: Topgreener TDOS5-J-W, In-Wall PIR Occupancy/Vacancy Motion Sensor Switch, No Neutral Wire Required - White

TDOS5-J-White Motion Detector Switch Occupancy Vacancy Sensor

The TDOS5-J combines both occupancy and vacancy sensors into one light switch for ease of use and energy efficiency without the need of a neutral wire. Offering value and convenience in an easy-to-install package.

The TDOS5-J installs easily in both residential and commercial properties. A neutral wire is not required, though a ground wire is. This product works with all bulb types - including 120-277VAC incandescent bulbs up to 500W and LED bulbs up to 150W - and motors up to 1/8HP. It's also UL-listed.

Reduce False Positives With PIR Technology

Passive infrared (PIR) motion sensing technology monitors small changes in heat radiation to detect when someone enters or exits a room. PIR occupancy vacancy sensor switches work only when a person is in their line of sight, which makes them best for wide open rooms. In these conditions, they can be highly effective and accurate, while delivering low power operation at an affordable price point.

Applications

PIR motion detector switches - such as the TOPGREENER TDOS5-J - are ideal in a kitchen, laundry room, landing area, or anywhere else people frequently come and go carrying bulky items that make manually turning on a light difficult. This small upgrade can improve safety, save you time, and simplify daily tasks.

Energy Savings

Save money on your energy bill by making sure unused lights and fans are always turned off with a motion sensor switch. Vacancy mode's manual-on feature saves further energy by ensuring lights and fans are turned on only when needed with a motion sensor switch. Avoid having lights accidentally left on all day.

Sensor Technolgy PIR Passive Infrared

Coverage 1200 sq. ft. at 180 degree field of view

Power Rating 120/277VAC

Time Delay 15 Sec to 30 min

Motor 1/8HP @120VAC

Special Features LED Indicatior Light

Wiring Single Pole, Neutral Wire NOT Required, Ground Wire Required

Compatibility Incandescent 500W, Fluorescent/Ballast 500VA @ 120VAC & 1000VA @ 277VAC

Certifications & Compliance UL Listed

Features

  • Detects motion to automatically control lights
  • Passive infrared (PIR) sensor detects body heat to reduce false triggers.
  • Occupancy switch mode (Auto ON, Auto OFF).
  • Vacancy switch mode (Manual ON, Auto OFF) .
  • Fixed time delays: 15 sec (Test), 5 min, 10 min, 20 min, 30 min
  • Adjustable range.
  • 1200 square feet coverage, 180 degree field of view.
  • Interchangeable hot and load wires for easy installation.
  • 120-277VAC; Incandescent: 500W; LED: 150W; Motor: 1/8HP.
  • Operating temperature (32
