Reduced price! ZERO 233A/BK/D/G Ramp 3" (76.2) - Threshold View larger

ZERO International

ZERO 233 Ramp, 3"

233

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$18.15

10% Off

$20.16

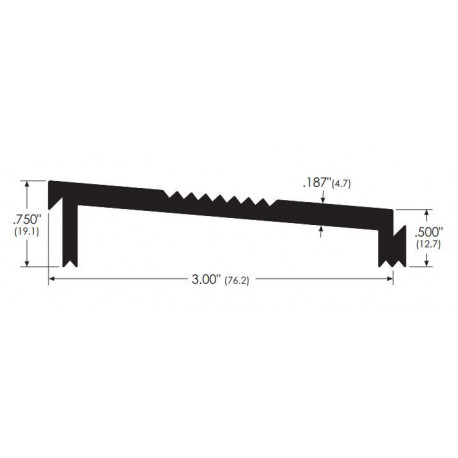

Details: ZERO 233 Ramp, 3"

This Zero #233 heavy duty aluminum ramp bridge has interlocking components which eliminates the need to weld joints. It can accommodate changes in floor conditions from .75" to .5". Can be combined with other products to create an ADA compliant ramp. Available with various options and is custom cut to size.

Specifications

Offset Height
.75" Height
Width
3" Width
Length
Custom Cut to Size
Material Thickness
.187" Thick
Material
Aluminum
Ramp Component
Ramp Bridge
Ramp Type
Flush Application
Installation
Installation screws provided
Drilling
Drilling holes NOT provided

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Data Sheet

Available Model Numbers and Combinations

Model/SKUAttributes
233BK-1 Aluminum Black Anodized,
233BK-2 Aluminum Black Anodized,
233BK-3 Aluminum Black Anodized,
233BK-4 Aluminum Black Anodized,
233BK-5 Aluminum Black Anodized,
233BK-6 Aluminum Black Anodized,
233BK-7 Aluminum Black Anodized,
233BK-8 Aluminum Black Anodized,
233BK-9 Aluminum Black Anodized,
233BK-10 Aluminum Black Anodized,
233D-1 Aluminum Dark Bronze Anodized,
233D-2 Aluminum Dark Bronze Anodized,
233D-3 Aluminum Dark Bronze Anodized,
233D-4 Aluminum Dark Bronze Anodized,
233D-5 Aluminum Dark Bronze Anodized,

View All Model Numbers and Options
