Reduced price! Cal-Royal 5000 Non-Fire and Fire Rated Push Bar Exit Device View larger

Cal-Royal

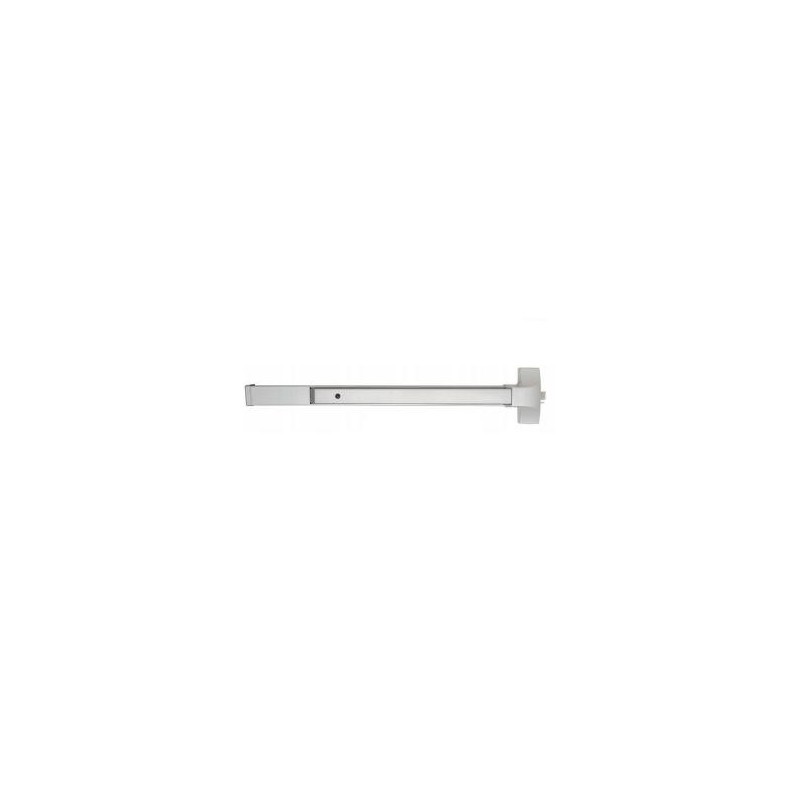

Cal-Royal 5000 Non-Fire and Fire Rated Push Bar Exit Device

Must Order Trim Separately

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$108.12

40% Off

$180.20

?

Details: Cal-Royal 5000 Non-Fire and Fire Rated Push Bar Exit Device

Features

  • ANSI A156.3, Grade 2 heavy duty exit device in surface vertical rod and rim designs.
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes.
  • UL Listed for Fire Exit Hardware. 3 hours.
  • (A) label rating on pairs of doors up to 8' × 8' swinging in same or opposite directions.
  • Uncompromising security and safety in single and double fire exit doors.
  • Chassis mounted unit construction.
  • Available in standard functions. Lever and knob trims are grade 2 construction with optional clutch freewheeling mechanism. Rose covers 161 cut out.
  • Conforms and meets ADA Regulations

Suggested Architect's Specifications:

  • All exit devices shall be of touch bar design with smooth operation and be operative over ⅔ of the door's clear opening width.
  • All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes.
  • All exit devices shall be of chassis mounted unit construction.

Available Model Numbers and Combinations

Model/SKUAttributes
5000EO36 ALUM ANTB-EXIT 36", Satin Nickel, Non Fire Rated, Included
5000EO36 US32D ANTB-EXIT 36", Satin Stainless Steel, Non Fire Rated, Included
5500EO48 ALUM ANTB-EXIT 48", Satin Nickel, Non Fire Rated, Included
5500EO48 US32D ANTB-EXIT 48", Satin Stainless Steel, Non Fire Rated, Included
F5000EO36 ALUM ANTB-EXIT 36", Satin Nickel, Fire Rated w/ Thru Bolts, Included
F5000EO36 US32D ANTB-EXIT 36", Satin Stainless Steel, Fire Rated w/ Thru Bolts, Included
F5500EO48 ALUM ANTB-EXIT 48", Satin Nickel, Fire Rated w/ Thru Bolts, Included
F5500EO48 US32D ANTB-EXIT 48", Satin Stainless Steel, Fire Rated w/ Thru Bolts, Included
5000EO36 ALUM 36", Satin Nickel, Non Fire Rated, Not Included
5000EO36 US32D 36", Satin Stainless Steel, Non Fire Rated, Not Included
5500EO48 ALUM 48", Satin Nickel, Non Fire Rated, Not Included
5500EO48 US32D 48", Satin Stainless Steel, Non Fire Rated, Not Included
F5000EO36 ALUM 36", Satin Nickel, Fire Rated w/ Thru Bolts, Not Included
F5000EO36 US32D 36", Satin Stainless Steel, Fire Rated w/ Thru Bolts, Not Included
F5500EO48 ALUM 48", Satin Nickel, Fire Rated w/ Thru Bolts, Not Included
