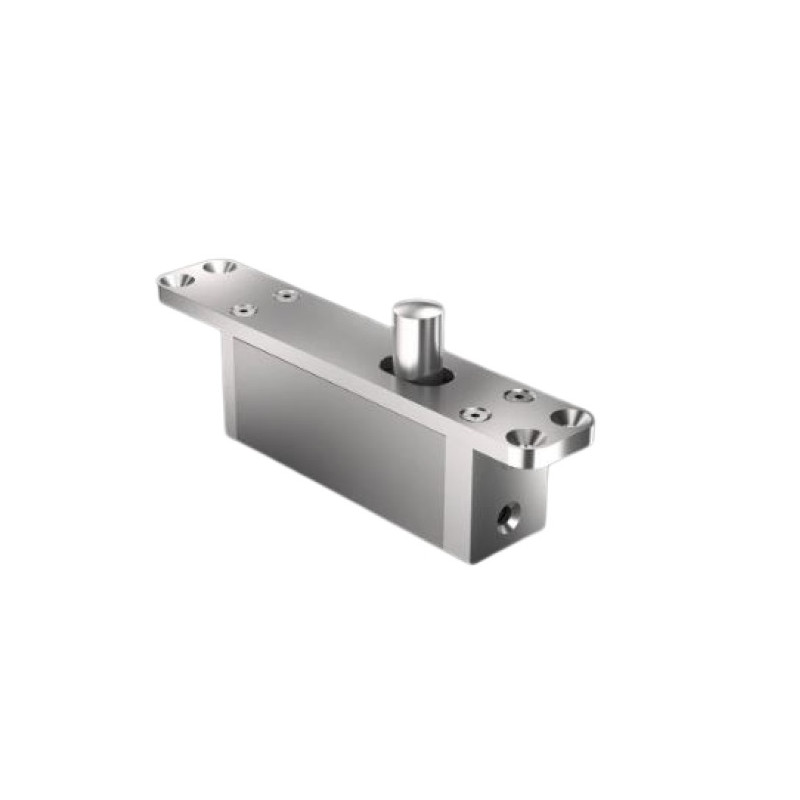

FritsJurgens TP.X.70 Top Pivot, 70mm Backset

TP.X.70.

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$573.30

Details: FritsJurgens TP.X.70 Top Pivot, 70mm Backset

Description

This top pivot is a real all-rounder. The ability to position the system 70 mm from the door's side reduces unused space while retaining the beautiful, distinctive pivot door movement. This top pivot can be placed in any position between 70 mm and the center of the door and is suitable for all FritsJurgens' pivot systems. Top pivot 70 mm is available in two options: one for doors up to 150 kg (Class B), and one for doors between 150 kg and 500 kg (Class G). These options distinguish themselves from each other by the thickness of the pin, making each system fit for purpose.

Specifications

Pin Thickness
10mm Class B, 15mm Class G
Door Weight (Class B)
Up to 150 kg
Door Weight (Class G)
Between 150 and 500 kg
Pivot Point
Flexible from 70 mm
Placement Type
Side placement and middle placement
Adjustment
Side of door
Top Pivot Placement
Top of door
Dimension
171.5 × 32 × 44 mm

Downloads

FritsJurgens' Top pivot 70 mm - TP-70

Fritsjurgens New Top Pivots - New Possibilities
