  6. ABH Hardware 0327 Center Hung Pivot Set (Non-Handed)
Reduced price! ABH Hardware 0327 Center Hung Pivot Set (Non-Handed) View larger

ABH Hardware

ABH Hardware 0327 Center Hung Pivot Set (Non-Handed)

327

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$110.40

40% Off

$184.00

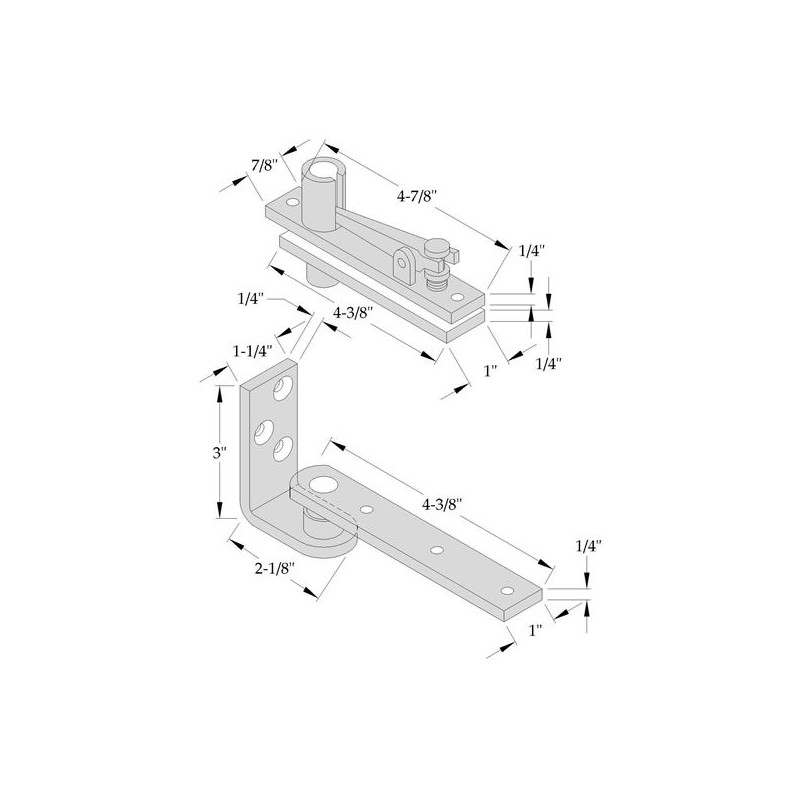

Details: ABH Hardware 0327 Center Hung Pivot Set (Non-Handed)

Pivot sets include top and bottom pivots. Offset pivot sets are handed and require an intermediate pivot to accommodate the door weights listed for each set. Door Edge must be beveled 1/8" in 2". All sets are available in standard architectural finishes. These pivot sets are highly durable, manufactured by a company with 20 years experience in the business performing the most technologically advanced builds possible. Available in 13 different finishes, you are sure to find one that will match your existing hardware.

Features

  • For interior doors up to 4'0" to 3"6'
  • UL listed for use on 3-hour fire rated doors
  • Weight to 300 lbs.
  • Bottom pivot mortised into floor
  • Extended spindles available
  • BHMA/ANSI C07162/3530A (modified)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Available Model Numbers and Combinations

Model/SKUAttributes
327US9 Bright bronze - clear coated, Not Included
327US9SEC Bright bronze - clear coated, Included
327US32D Satin Stainless Steel, Not Included
327US32DSEC Satin Stainless Steel, Included
327US10B Dark Bronze, Not Included
327US10BSEC Dark Bronze, Included
327US10 Satin Bronze, Not Included
327US10SEC Satin Bronze, Included
327US4 Satin Brass, Not Included
327US4SEC Satin Brass, Included
327S1 Painted Aluminum, Not Included
327S1SEC Painted Aluminum, Included
327S2 Painted Brass, Not Included
327S2SEC Painted Brass, Included
327S3 Painted Bronze, Not Included

View All Model Numbers and Options
