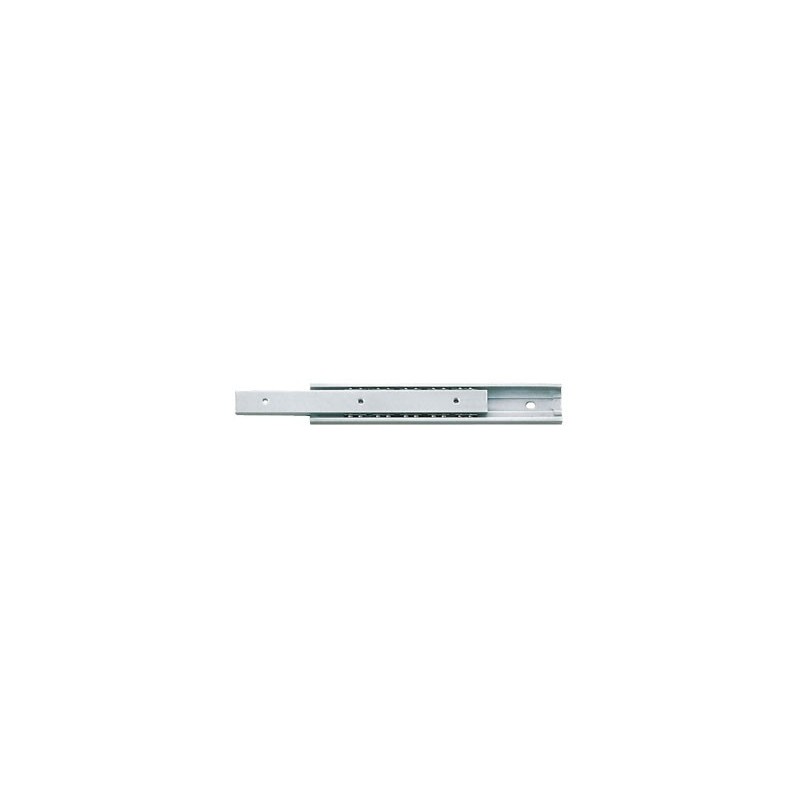

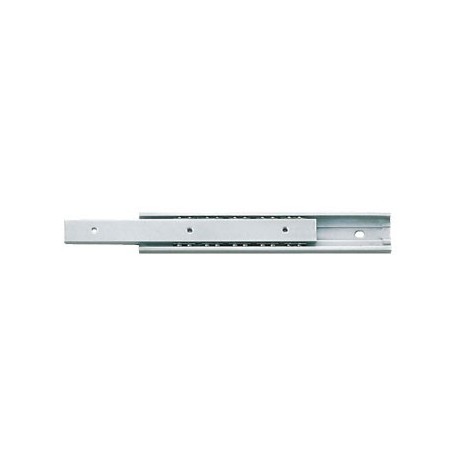

Sugatsune ARW2-16 Aluminum Mini Slide, 2-Way
Warning: Last items in stock!
Availability date:
Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
The Sugatsune ARW2-16 Aluminum Mini Slide (2-Way) is perfect for high end residential, commercial, and industrial applications. Full extension and þ extension slides are also available for purchase.
Aluminum Mini Slide (2 Way Travel), Load Rating 6.6~15.4 lbs, 3/4 Extension aluminum slide with steel ball bearings, Two-way travel, Thin profile for various applications, Light-weight aluminum body, Designed without positive stop for ease of assembly, *Please add secondary stopper if necessary, Non-handed, Recommended Hardware: M2.5 Truss Head Screws.
Note: Screws not included
Sugatsune knows the importance of high quality products, and their passion is apparent in every element of their business. People say that seeing is believing, but to actually hold a Sugatsune product, to feel it in your hand as you perform its intended purpose, you'll know you made the right choice. Every detail of Sugatsune's cabinet hardware is fully realized, whether it's their concealed hinges, lid stays, sliding door pulls, stainless steel handles, drawer slides, magnetic catches or latches. So what are you waiting for? A miracle? Unfortunately Sugatsune can't guarantee divine intervention, but their quality and customer service come awfully close.
Item No. | Slide Length | Front Travel Length | Back Tracel Length | A | B | C | D | E | Load Rating (kg/pair) | Load Rating (lbs/pair) | Load Rating (kg/pair) | Load Rating (lbs/pair) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
ARW2-16-70 | 70 (2-3/4") | (30)(1-11/64") | (30)(1-11/64") | - | 46 | 70 | - | 46 | 3 | 6.6 | 1.1 | 2.4 |
ARW2-16-100 | 100 (3-15/16") | (40)(1-37/64") | (40)(1-37/64") | 38 | 76 | 100 | 38 | 76 | 5 | 11 | 2 | 4.4 |
ARW2-16-150 | 150 (5-29/32") | (79)(3-7/64") | (79)(3-7/64") | 63 | 129 | 150 | 63 | 126 | 7 | 15.4 | 3.1 | 6.8 |
Model/SKU | Attributes |
---|---|
ARW2-16-70 | |
ARW2-16-100 | |
ARW2-16-150 |
