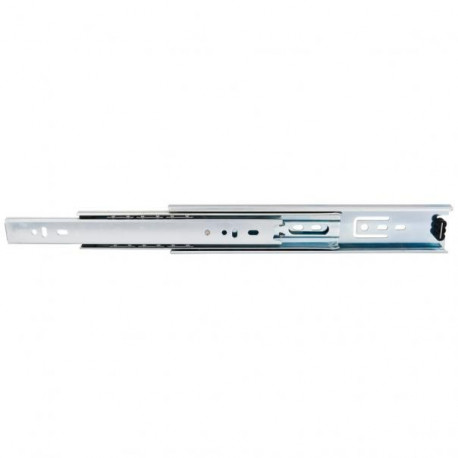

Reduced price! Hardware Resources 303FU-R Heavy Duty Side Mount Ball Bearing Slides - Retail Pack View larger

Hardware Resources

Hardware Resources 303FU HR MAX Heavy Duty Full Extension Side Mount Ball Bearing Slide, 100 Lb, Retail Pack

303FU

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$12.76

10% Off

$14.18

Details: Hardware Resources 303FU HR MAX Heavy Duty Full Extension Side Mount Ball Bearing Slide, 100 Lb, Retail Pack

Features

  • Market proven ball bearing side mount slide
  • Lubricated steel ball bearings with cage hold forward - retains cage during drawer member installation
  • Synthetic rubber hold-in detent - prevents bounce back and roll out
  • 1/2" side spacing
  • Non-handed trigger disconnect release
  • 45 mm profile height
  • 1/2" side spacing
  • 1.0 mm × 1.0 mm × 1.2 mm cold rolled steel material
  • Clear zinc electroplated finish
  • Retail Pack - Screws & Instructions Included
  • Installation brackets available

Specifications

Closing
Self-close
ADA Friendly
No
Adjustable
Yes
Packaging Type
Retail Packed
Load Rating
100 lb
Extension
Full Extension
Brand
HR Max
Accessories
Screws & Instructions Included
Series
303FU Series
Height
45 mm
Certification
ANSI/BHMA Grade 1
Mount Type
Side Mount

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
