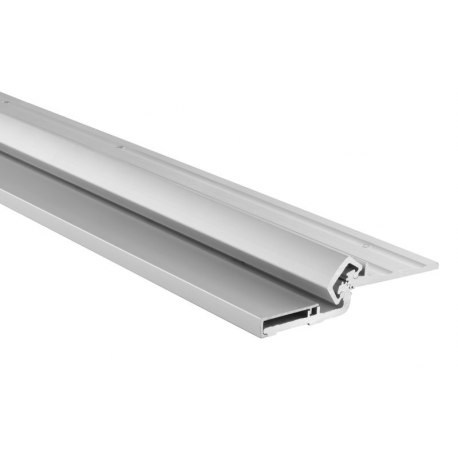

Pemko _HS Half Surface Hinges

Order $500 worth of Pemko Products and get 30% OFF!

Item is normally shipped within 2-3 weeks from manufacturer. Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$372.27

?

Details: Pemko _HS Half Surface Hinges

Standard Duty Anodized Aluminum Continuous Geared - designed mainly for retrofit work, and are applied to the exposed surface of the door and frame rabbet.

Heavy Duty Anodized Aluminum Continuous Geared - designed mainly for retrofit work, and are applied to the exposed surface of the door and frame rabbet. Also available in standard duty models.

Standard Duty Anodized Aluminum Safety Continuous Geared - designed mainly for retrofit work in child care and nursing facilities and are applied to the exposed surface of the frame rabbet.

Offset Continuous Geared hinge - allows door to swing further from door opening

Standard Duty Anodized Aluminum Continuous Geared

  • Designed for use with hollow metal frames, where the inset conforms to S.D.I. specifications for aligning doors and frames.
  • Allows for adjustments in order to properly align the edge of the door to the frame.
  • BL (Black Anodized) and PW (Painted White) are special finishes available upon request.
  • Fasteners - Frame Portion - All fasteners are #12-24 × 7/16" FHUC, Type C, threadforming.
  • Standard model: 16 fasteners required for each leaf.
  • Wood screws available on request (specify on order).
  • Fasteners - Door Portion - a. Thru-bolt - 1/4-20 × 1-5/8". - Standard Duty Hinges - 4 required. - b. Shoulder Bolt - 1/4-20 × 1" PCH. - Standard Duty Hinges - 4 required. - c. Pan Head Self Drilling #12 × 3/4". - Standard Duty Hinges - 6 required.
  • Standard duty hinge. 6" between bearing centers.
  • Standard duty hinges conform to Grade 3-150 and Grade 3-300 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006.
  • Tested and certified by Underwriters Laboratories Inc. (USA and Canada) to standard UL10B, UL10C and UBC 7.2 (positive pressure) for up to a 3-Hour (A-Label) fire listing for all 4 ft. 0 in. × 10 ft. 0 in.
  • and 8 ft. 0 in. × 10 ft. 0 in. door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry construction.
  • Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also wood core rated up to and including 20 minutes without hose stream.
  • All hinges meet criteria of UBC 7.2 for positive pressure.
  • Special FirePins are only required on 3-Hour (A-Label) assemblies.
  • Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80.
  • PemkoHinge® products are guaranteed for the life of the opening against defects in material or workmanship with the exception of AL, RS, standard duty and Grade 3 hinges, which carry a 10 year warranty.
  • Weight bearing (per BHMA standard ANSI/BHMA A156.26-2006) for standard models: 83" and 85" = 14 bearings, door weight = 280 lbs.; 95" = 16 bearings, door weight = 320 lbs.; 120" = 20 bearings, door weight = 400 lbs.
  • Special hinge reinforcements are not required. Hollow metal door and frame manufacturers' standard is acceptable. Removal of hinge reinforcements in the door and frame is not advised.
  • Width: 1/8" (3.2 mm) (between frame edge and door edge).
  • Width: 2" (50.8 mm) (between frame leaf and door leaf edge).
  • Cap Width: 25/32" (19.8 mm).
  • Height: 11/16" (17.5 mm) (to top cap/frame edge side).
  • Height: 1-7/8" (47.6 mm) (to flange/frame edge side).

Ratings

  • BHMA Certified
  • Fire Rated - UL10C - Positive Pressure
  • PemkoHinge Fire Rating - UL76Y2

Finishes

  • BLHS: BL - Black Anodized Aluminum, (Special Order Finish)
  • CHS: C - Clear Anodized Aluminum
  • DHS: D - Dark Bronze Anodized Aluminum
  • GHS: G - Gold Anodized Aluminum, (Special Order Finish)
  • PWHS: PW - Painted White Aluminum, (Special Order Finish)
  • SNHS: SN - Satin Nickel Anodized Aluminum, (Special Order Finish)

Documentation

Continuous Geared Hinges Comparison Chart

Pemko Continuous Geared Hinges
PemkoDescriptionMcKinneyABHBommerCal-RoyalHagerIvesNGPPBBRotonSelectStanleyZero
X25MX-Series Full Mortise for 2 1/2" Thick Door------------1200-650XHD---------1200-650XHD---------
OSFMHD1Offset Full Mortise, Heavy Duty Grade 1---A410HD------780-041HD---HD4100CG31CL (grade 3)780-041HDSL41HD------
OSHSHD1Offset Half Surface, Heavy Duty Grade 1---A211HD------780-211HD---HD4200---780-211HD---------
FMHD1Full Mortise, Heavy Duty Grade 1MCK-25HDA140HD/A240HD------780-224HD224HDHD2400---780-224HDSL24HD662HD---
FMHD3Full Mortise, Heavy Duty Grade 3------FMHDCRHD782240---------CG31L---------914DB
FMSLIHD1Full Mortise Short Leaf Inset , Heavy Duty Grade 1MCK-14HDA160HD------780-111HD---HD1800---780-111HDSL18HD------
FMSLIHD3Full Mortise Short Leaf Inset, Heavy Duty Grade 3------FMSLIHD------------CG31I------------
FMSLFHD1Full Mortise Short Leaf Flush, Heavy Duty Grade 1MCK-12HDA110HD/A270HD------780-112HD/ 780-226HD112HDHD1100---780-112HD/ 780-226HDSL11HD661HD---
FMSLFHD3Full Mortise Short Leaf Flush, Heavy Duty Grade 3------FMSLFHDCRHD781120---------CG32---------910DB
FMSLF138-HD1Full Mortise Short Leaf Flush for 1 3/8" thick Door Heavy Duty Grade 1---------------------------SL38HD------
HSHD1Half Surface, Heavy Duty Grade 1MCK-54HDA540HD------780-054HD054HDHD5400---780-054HDSL54HD663HD---
HSHD3Half Surface, Heavy Duty Grade 3------HSHDCRHD780530---------------------921DB
HMHD1Half Mortise, Heavy Duty Grade 1---A520------------------------------
HMHD3Half Mortise, Heavy Duty Grade 3---------------------------------922DB
FSHD1Full Surface, Heavy Duty Grade 1MCK-22HDA210HD------780-210HD210HDHD2100---780-210HDSL21HD665HD---
FSHD3Full Surface, Heavy Duty Grade 3------FSHDCRHD782100---------CG33C---------930DB
FSCPHD1Full Surface Center Pivot, Heavy Duty Grade 1MCK-58HDA570HD------780-157HD157HDHD5700---780-157HDSL57HD------
FSCPHD3Full Surface Center Pivot, Heavy Duty Grade 3---------CRHD781570---------CG33N---------935DB
FSBPHD1Full Surface Balanced Pivot, Heavy Duty Grade 1---A571HD------780-057HD---------780-057HD---664HD---
FSBPHD3Full Surface Balanced Pivot, Heavy Duty Grade 3---------CHRD780570---------------------936DB
SPFMSLIHD1Special Full Mortise Short Leaf Inset, Heavy Duty Grade 1---A260HD---------------------SL48HD------
KFM-HD1Kawneer Full Mortise, Heavy Duty Grade 1K-MCK-12HDA150HD------------------------------
FMSLISF-HD1Full Mortise Short Leaf Inset Safety, Heavy Duty Grade 1MCK-38HDA130HD------780-113HD---------780-113HDSL71HD------
FM-1100Full Mortise, Extra Heavy Duty---A140LL------------------------------
FMSLI-1100Full Mortise Short Leaf Inset, Extra Heavy Duty---A160LL---------------------SL18LL------
FMSLF-1100Full Mortise Short Leaf Flush, Extra Heavy Duty---A110LL------1200-600XHD---------1200-600XHDSL11LL------
WTFMHD1Wide Throw Full Mortise, Heavy Duty Grade 1MCK-WTFMHDA110WTWTFM (grade 3)---780-235HD---------780-235HDSL40HD------
WTHSHD1Wide Throw Half Surface, Heavy Duty Grade 1------------------------------------
HSSFHalf Surface Safety------------780-155---------780-155---------
HSSF-HD1Half Surface Safety, Heavy Duty Grade 1---A550HD------780-155HD---------780-155HD---------
RS138Full Mortise Residential for 1 3/8" Thick Door------------750-138---------750-138---------
RS175Full Mortise Residential for 1 3/4" Thick Door------------750-134---------750-134---------

Disclaimer: This is a comparison for like product. This is not a legal or binding document. Consult manufacturer’s catalogs for additional information

Available Model Numbers and Combinations

Model/SKUAttributes
CHS83 83", Clear Anodized Aluminum, HS - Standard Duty
CHS85 85", Clear Anodized Aluminum, HS - Standard Duty
CHS95 95", Clear Anodized Aluminum, HS - Standard Duty
CHS120 120", Clear Anodized Aluminum, HS - Standard Duty
DHS83 D - Dark Bronze Anodized Aluminum, 83", HS - Standard Duty
DHS85 D - Dark Bronze Anodized Aluminum, 85", HS - Standard Duty
DHS95 95", D - Dark Bronze Anodized Aluminum, HS - Standard Duty
DHS120 D - Dark Bronze Anodized Aluminum, 120", HS - Standard Duty
CHS83HD3 83", Clear Anodized Aluminum, HS - Grade 3 Heavy Duty
CHS95HD3 95", Clear Anodized Aluminum, HS - Grade 3 Heavy Duty
DHS83HD3 D - Dark Bronze Anodized Aluminum, 83", HS - Grade 3 Heavy Duty
DHS95HD3 95", D - Dark Bronze Anodized Aluminum, HS - Grade 3 Heavy Duty
CHS83HD1 83", Clear Anodized Aluminum, HS - Grade 1 Heavy Duty
CHS85HD1 85", Clear Anodized Aluminum, HS - Grade 1 Heavy Duty
CHS95HD1 95", Clear Anodized Aluminum, HS - Grade 1 Heavy Duty
