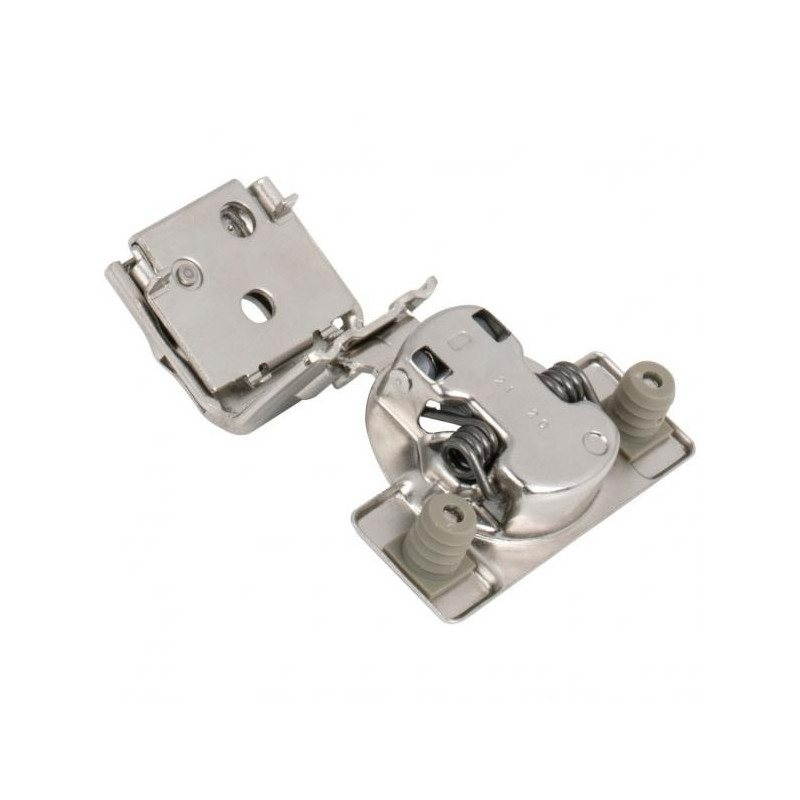

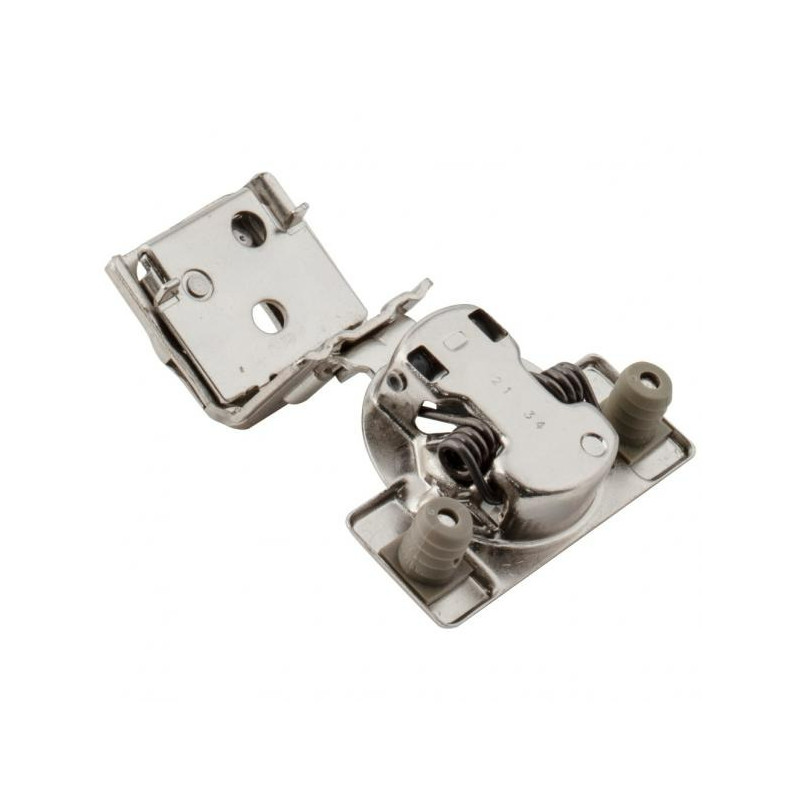

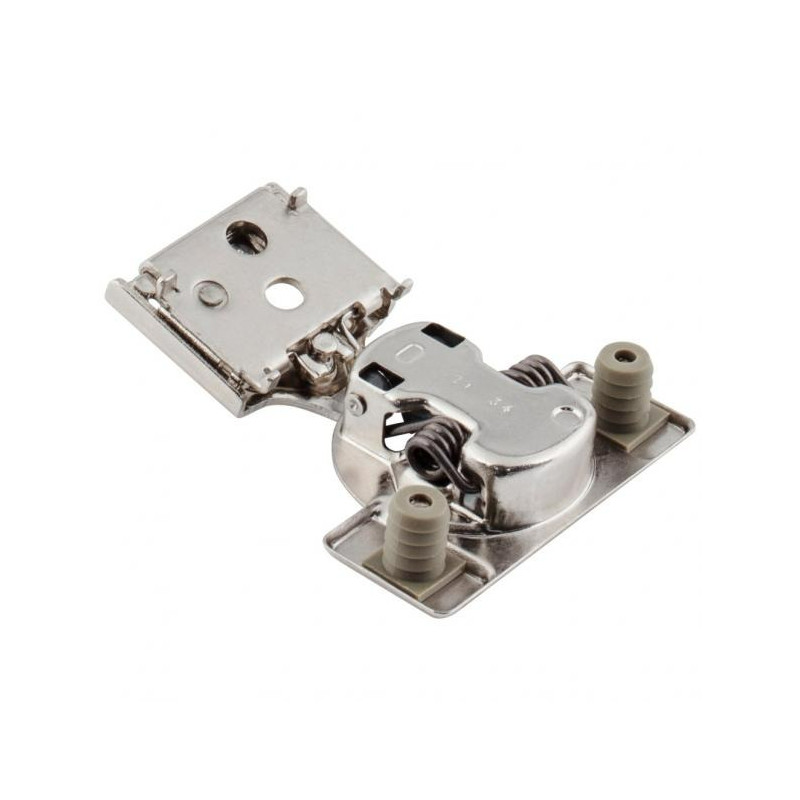

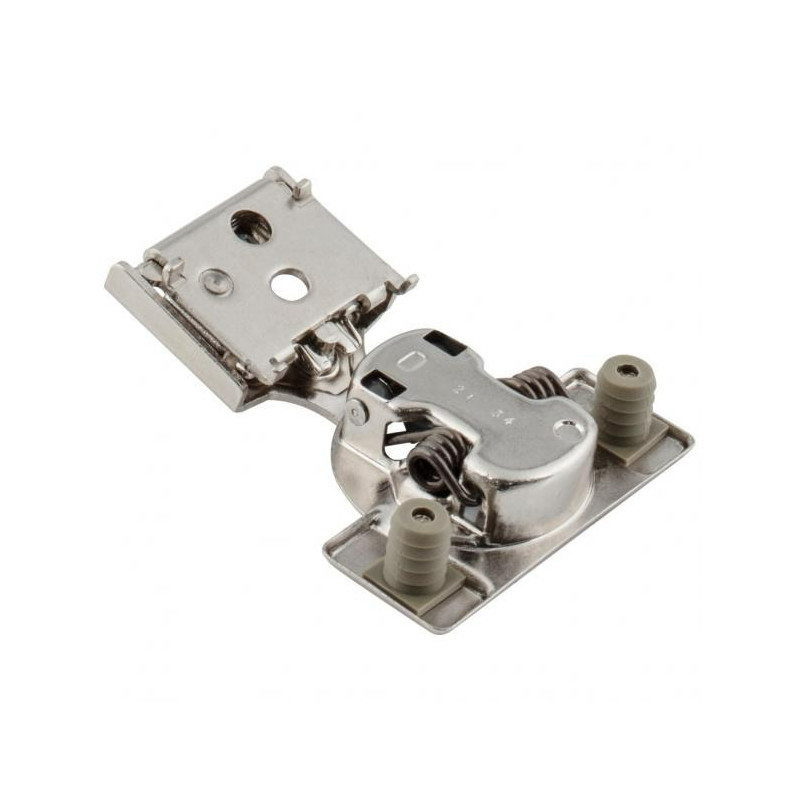

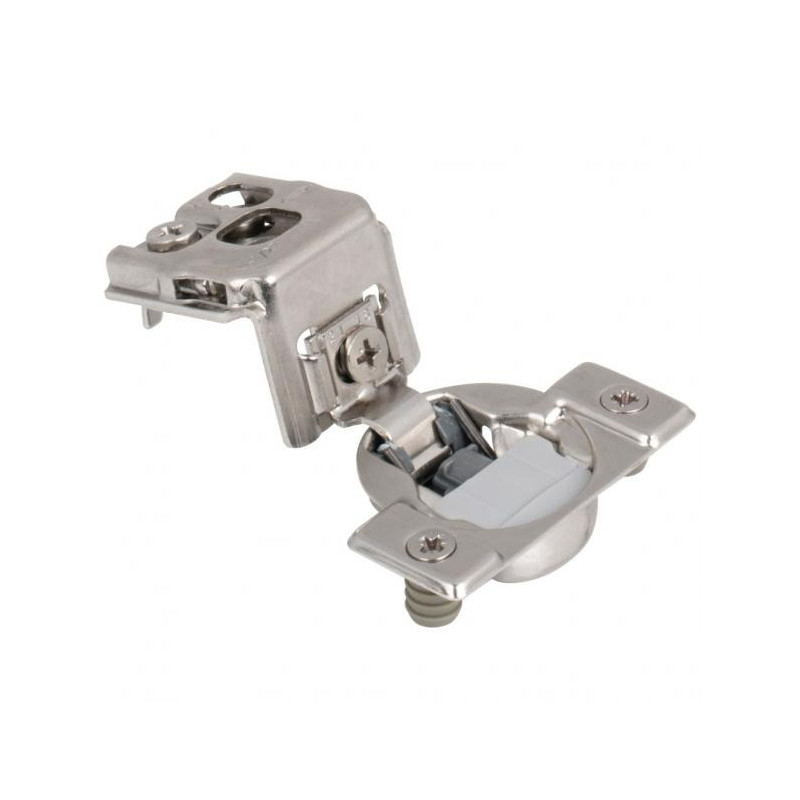

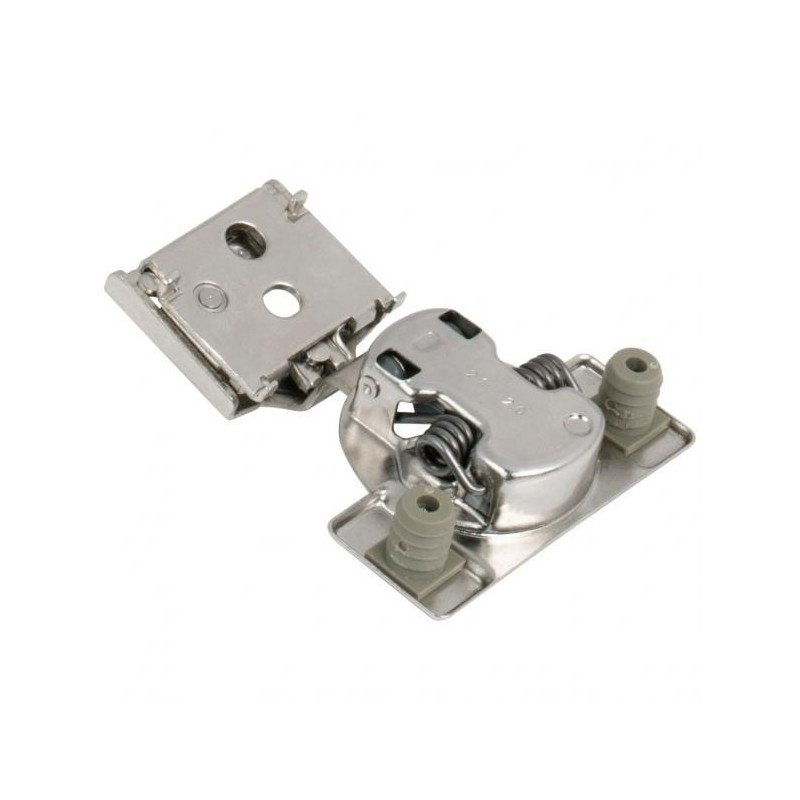

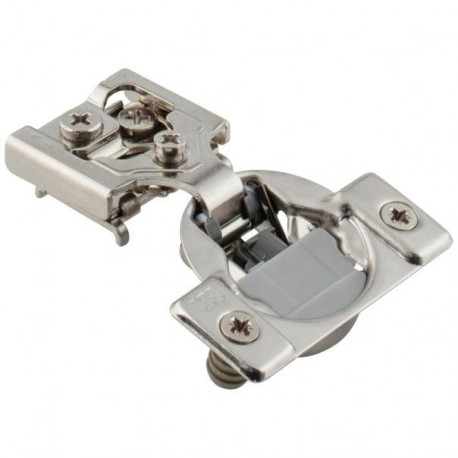

Hardware Resources 939 HR MAX Heavy Duty Soft-Close Compact Hinge w/ Press-In 8 mm Dowel

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$4.79

10% Off

$5.32

Details: Hardware Resources 939 HR MAX Heavy Duty Soft-Close Compact Hinge w/ Press-In 8 mm Dowel

Features

  • HR Max = Quality backed by Lifetime warranty
  • Streamlined glide channels reduce friction and wear
  • Tested and proven soft-close mechanism will last the life of the hinge
  • Use in conjuction with 8390 Series hinges on lighter doors
  • Grade 2 ANSI/BHMA certified to 50,000 cycles and 6-way adjustability
  • Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
  • One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
  • For face frame applications
  • Single pivot point
  • No.7 × 5/8" pan washer head screw recommended for installation (item No. 7X0580WCQ)

Specifications

Closing
Soft-close
Hinge Cup Bore Depth
11.2 mm
Hinge Type
Compact
Mount Centers
45 mm
Cabinet Type
Faceframe
Pivot Type
Single
ADA Friendly
No
Packaging Type
Small Package
Degree of Opening
105 Degree
Overlay Adjustment
+2 mm, -2 mm
Adjustment Type
Cam
Brand
HR Max
Series
9390 Series
Finish
Nickel
Hinge Cup Diameter
35 mm
Hinge Dowels
Press-in
Material
Steel
Certification
ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012
Installation
Screw
Mount Type
Press-in

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
