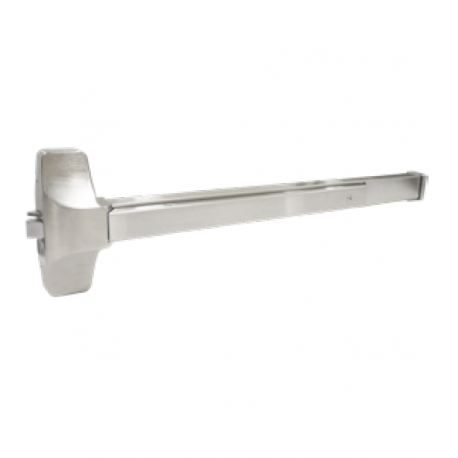

Reduced price! INOX ED70 RIM Exit Device View larger

Inox Unison

INOX ED70 Grade 1 Heavy Duty, Rim, Panic & Fire Exit Device

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$606.40

20% Off

$758.00

Details: INOX ED70 Grade 1 Heavy Duty, Rim, Panic & Fire Exit Device

ANSI/BHMA 156.3 Grade 1 Heavy Duty Panic & Fire Exit Device

Features

  • INOX ED70 and ED70F Rim Exit Devices are suited for most single door applications and can be used on double doors using a mullion
  • UL listed for Panic & Fire Exit Hardware
  • Meets ANSI A156.3 Grade 1 standards and will install on a standard 161 cut out
  • Non-handed with a universal design that allows them to easily retro?t the Von Duprin 98/99 series installation and Sargent 8800 series installations when paired with INOX exit device trim
  • Fits all doors up to 36" in width and 1-3/4" in thickness. 48" width devices can be ordered as an option. Cylinder dogging kits are also available as an option on a non-rated device

Specifications

Device Lengths
3' - 2'2" to 3' (660mm to 914mm) door size, 4' - 2'9" to 4' (838mm to 1219mm) door size
Strikes
Dull Black Rim Strike (EDLSR-255)
Dogging Feature
Hex Key Dogging available on Non-Fire Rated devices only
Dogging Options
Cylinder Dogging kits available on complete devices only, not as separate kits
Electric Options
Alarm Kit 36" and 48" available
Miscellaneous Options
GBK Glass Bead Kit
Fasteners & Sex Bolts
Furnished with wood & machine screws Thru-bolts standard on Fire-Rated devices
Latch Bolt
Stainless Steel 3/4" (19mm) throw
Device Centerline from Finished Floor
41" (1041mm)
Center Case Dimensions
7-7/8" x 2-9/16" x 1-7/8" (200mm x 65mm x 48mm)
Mechanism Case Dimensions
1-9/16" w x 2" (41mm x 51mm)
Projections
Pushbar Neutral

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
