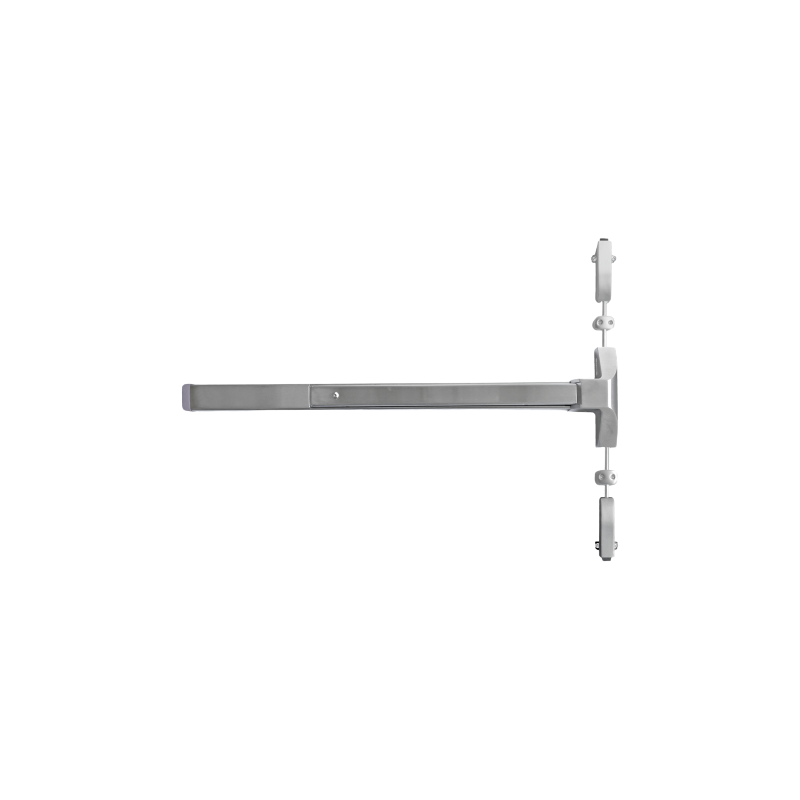

Reduced price! Cal-Royal 98GLS Series Grade 1 Narrow Stile Exit Device, Finish - Satin Stainless Steel View larger

Cal-Royal

Cal-Royal 98GLS Series Grade 1 Narrow Stile Exit Device, Finish - Satin Stainless Steel

Must Order Trim Separately

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$612.90

40% Off

$1,021.50

?

Details: Cal-Royal 98GLS Series Grade 1 Narrow Stile Exit Device, Finish - Satin Stainless Steel

SURFACE VERTICAL ROD TYPE, NARROW STILE EXIT DEVICES (98GLS-SVR & F98GLS-SVR SERIES)

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

Features

  • ANSI A156.3, GRADE 1 heavy duty exit device
  • Americans with Disability Act (ADA) Compliant, 5 lbs opening force on ADA products only
  • Conforms to ANSI/UL10C, ANSI/UL305 Standards

CONCEALED VERTICAL ROD TYPE, NARROW STILE EXIT DEVICES (N-98GLS-CVR & N-F98GLS-CVR SERIES)

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

Features

  • ANSI A156.3, GRADE 1 heavy duty exit device
  • Americans with Disability Act (ADA) Compliant, 5 lbs opening force on ADA products only
  • Conforms to ANSI/UL10C, ANSI/UL305 Standards

Specifications

For Doors
Wood, Metal or Aluminum Glass doors with 1 ¾" minimum stile width
Top & Bottom Chassis
Steel Material
Chassis Cover
Zinc Material
Mounting
Furnished standard with wood and machine screws
End Cap
Stainless Steel Construction
Alarm
Not available
Hand
Handed. Easily field reversible. Specify at time of order LHR or RHR for convenience
ANSI Standard
A156.3, Grade 1
Rail Assembly
Stainless Steel Material
Dogging Feature
Allen-type key furnished standard. Optional Cylinder Dogging Kit not available
UL and ULC Listed
98GLS-SVR Series for Panic & Safety, F98GLS-SVR Series for Fire Exit hardware for all types of 4' × 8' single doors and 8' × 10' double doors for up to 3 hour fire labeled installations. Conforms to ANSI/UL 10C, ANSI/UL 305 standards
Electronic Functions
ELR (Electrified Latch Retraction) available for both 36" and 48" push bar
Anti-Microbial Coating
Available on US32D only. Use part # ANTB-EXIT
