NGP 562 Beveled Edge Astragal on Inactive Leaf

562

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$104.00

20% Off

$130.00

Details: NGP 562 Beveled Edge Astragal on Inactive Leaf

Features

  • 20 ga. cold rolled steel
  • 18 ga. cold rolled steel on astragal welded to edges

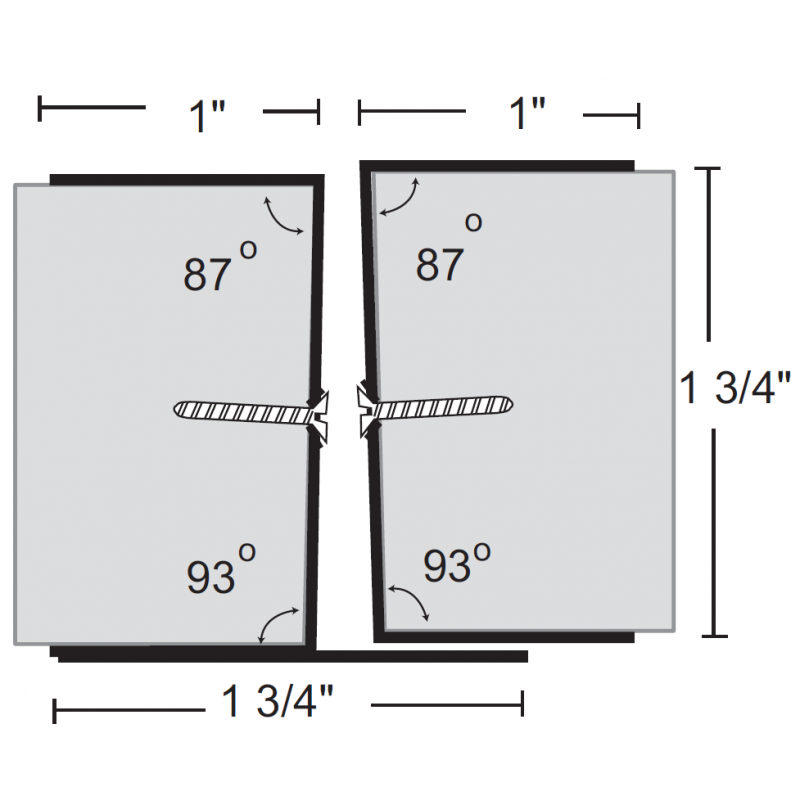

  • For 1-3/4" thick doors (inside dim. 1-3/4" actual)
  • #8 × 3/4" flat undercut Phillips head SMS
  • Standard finish = Tan (T) powder coat

Standards

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Options

  • Powder coat color options available - see color chart
  • Stainless steel 20 ga., Type 304, #4 brushed finish - suffix SS"
  • Galvanneal
  • Torx security screws
  • Special door thickness: 1-3/8", 2", 2-1/4"
  • Lead lining .030" thick

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
563TAN 6'8",
563DKB Dark Bronze, 6'8",
563GPZ 6'8", Gray Primer,
563BPR 6'8", Beige Primer,
563CAB 6'8", California Bronze,
563PTY 6'8", Putty,
563SS 6'8", Stainless Steel Satin,
