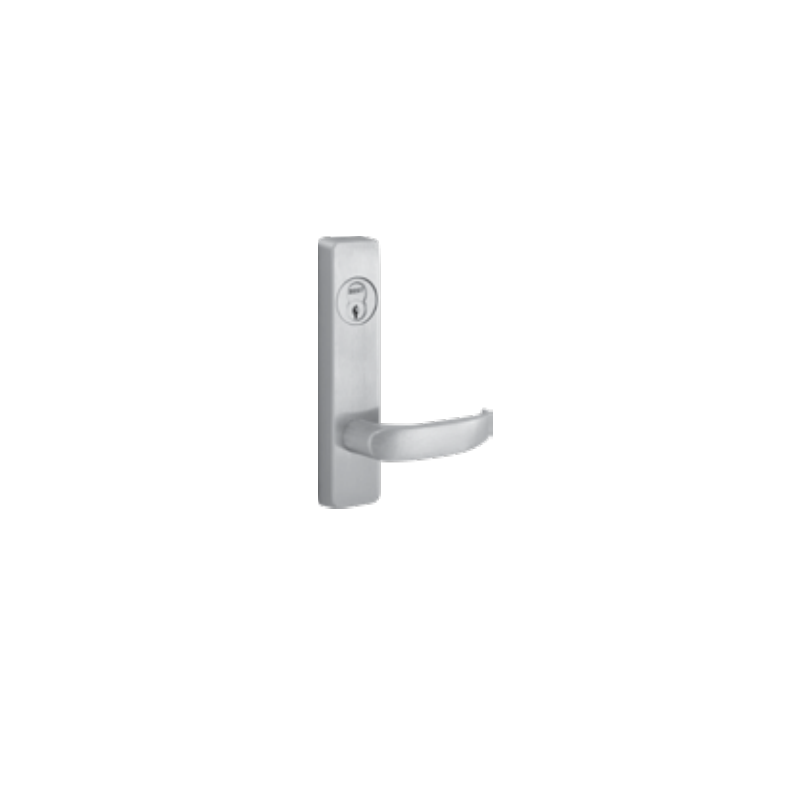

Details: Precision 2400 Rim Exit Device - Non Handed, Narrow Stile

Features

Doors

For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker door, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.

Functions

A Universal Exit Device. Add Trim for desired function.

Base Material

The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis

Investment Cast Steel, Zinc Dichromated.

Latchbolt

Stainless Steel, Deadlocking, 3/4" throw.

Strikes

No. S988, standard package for Aluminum Door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, optional for Hollow Metal Door or Mullion applications, please specify when ordering.

Top Strike

No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Dogging

1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Touchbar Height

39-15/16" from floor standard. May be varied as situation dictates.

UL Listed

Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 33. Conforms to UL10C and UBC 7-2.

ANSI/BHMA

Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes

605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Cylinders

Rim Type for "03" function, Mortise type for "08" function. Use 1-1/4" long standard mortise cylinder. Cylinders are not furnished standard. Specify when required.

Stile Width

See Stile Information on page 37.
