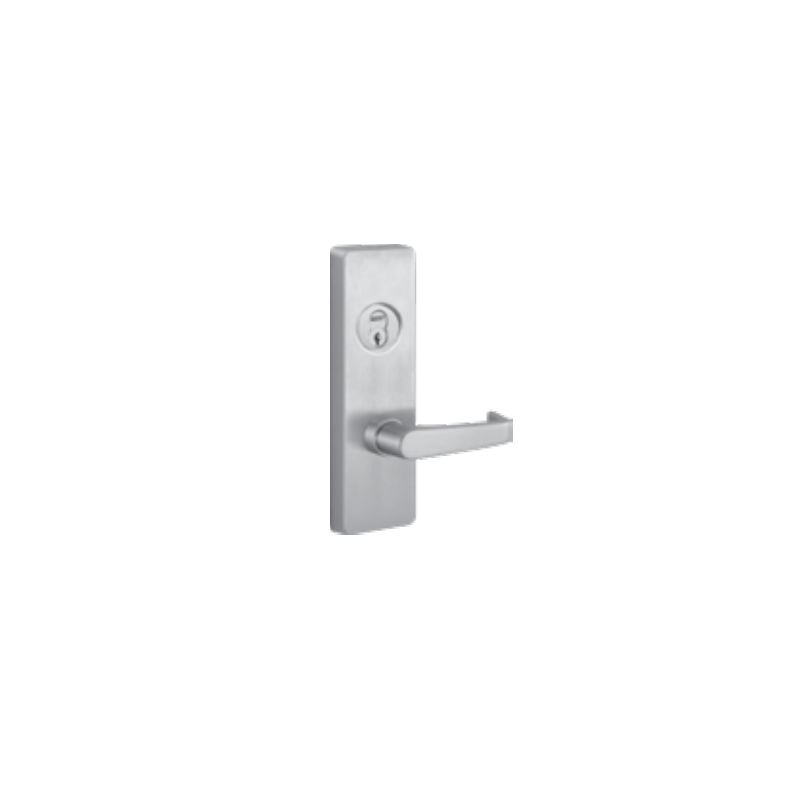

Precision E2103 Apex Rim Touchbar Electric Exit Device - Reversible, Wide Stile

3R0

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$3,436.00

Details: Precision E2103 Apex Rim Touchbar Electric Exit Device - Reversible, Wide Stile

Apex 2100 Series - Reversible (Device Only)

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for it's aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. Several models are also certified for hurricane resistant applications.

A complete offering of mechanical and electrical options provide a wide range of exit device security solutions. However, the traditional core strenghts of the product can't be overstated. Simple operation with few moving parts, manufactured with true ANSI/BHMA architectural finishes. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation.

Specification

Doors
For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.
Device
Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation
Functions
Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the "03" function is furnished standard
Double cylinder
Handed, "10" Function available. Requires two rim type cylinders, not furnished standard
Base Material
The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components
Chassis
Investment Cast Steel, Zinc Dichromated
Latch Bolt
Stainless Steel, Deadlocking, 3/4" throw
Strikes
No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering
Dogging
1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware
Touch Bar Height
39-15/16" from floor standard. May be varied as situation dictates
Reversible
Reversible for all functions and Trims. Standard packaging RHRB
UL Listed
Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 33. Conforms to UL10C and UBC 7-2
ANSI/BHMA
Devices are BHMA certified for ANSI 156.3, Grade 1
Finishes
605, 606, 612, 613, 625, 626W, 628, 630
Cylinder
Rim Type, not furnished standard. Specify when required
Retrofit Applications
The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers' mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix "R"

Documentation

Precision Apex 2000 Exit Devices Video
