  6. Rixson FL180 Fire Rated 3/4" Offset Top Pivot Set, For Lead-Lined/Heavyweight 1-3/4" Doors

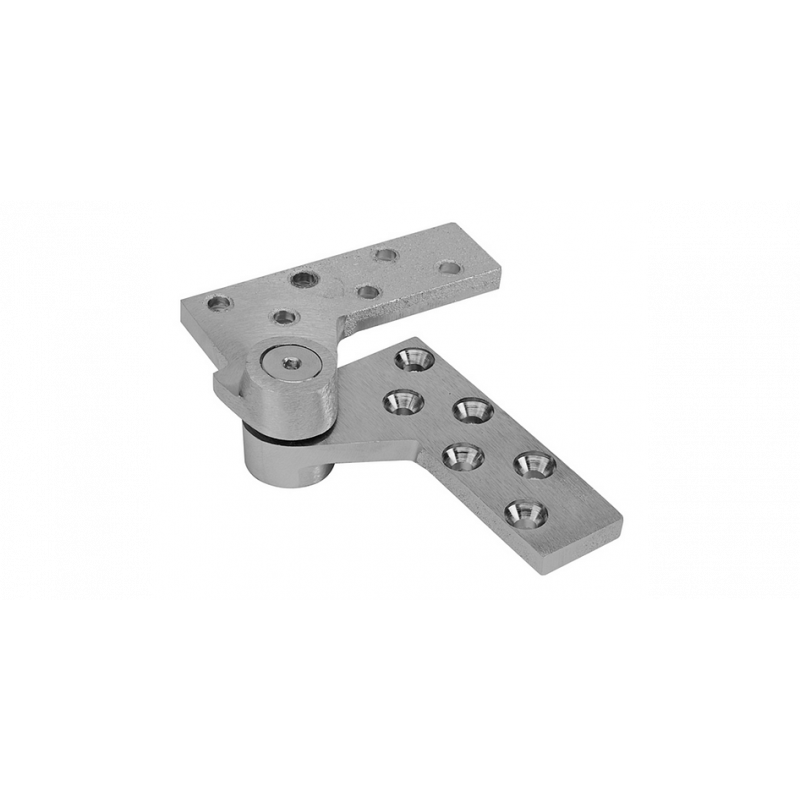

Reduced price! Rixson FL180 Fire Rated 3/4 Offset x 1-3/4 Door Only View larger

Rixson

Rixson FL180 Fire Rated 3/4" Offset Top Pivot Set, For Lead-Lined/Heavyweight 1-3/4" Doors

FL180

Item normally ships out within 7-10 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$374.93

40% Off

$624.89

Details: Rixson FL180 Fire Rated 3/4" Offset Top Pivot Set, For Lead-Lined/Heavyweight 1-3/4" Doors

The FL180 is a standard top pivot designed for lead-lined, heavy-duty, high-traffic doors.

Features

  • Full mortise
  • Non-handed
  • Lead-lined, heavy, high-traffic doors
  • Available with longer than standard pivot pins - increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only
  • Doors with lead lining under the skin should also use this product
  • Screw holes spaced to straddle lead in the middle of the door
  • Available to accommodate lead lined door thicknesses: 1-3/4" (44mm
  • 3/4" (19mm) offset (measured from centerline of pivot to face of door)
  • Ferrous base material
  • Furnished with wood and machine screws

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
