Reduced price! Sargent 8700 Surface Vertical Rod Exit Device w/ 862, 863, 864 Pulls

View larger

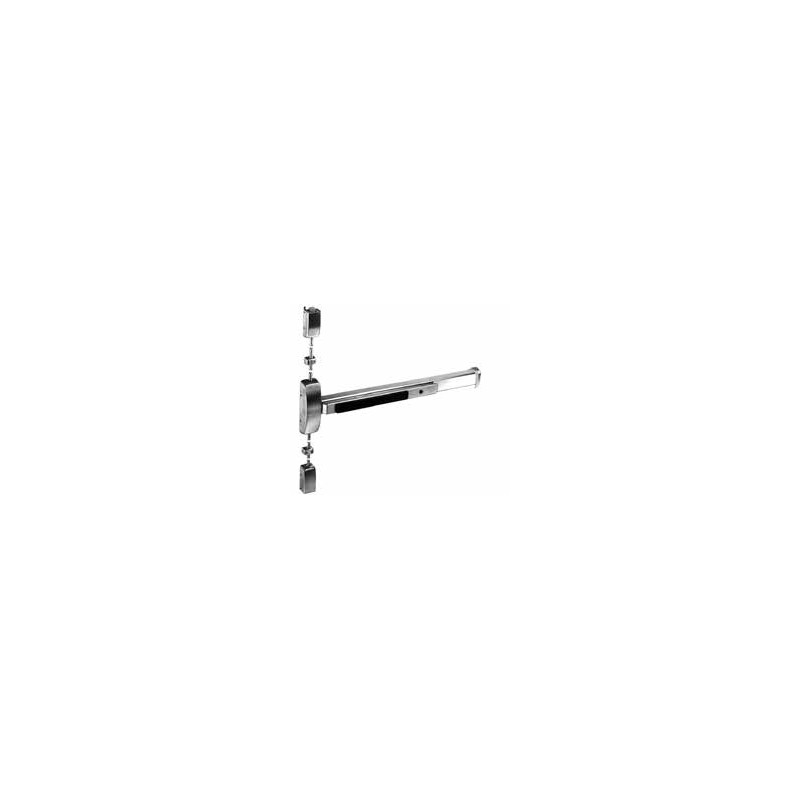

Sargent 8700 Surface Vertical Rod Exit Device w/ 300 Series Auxiliary Control & Pull Trim

Model:

Write a review

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Sargent 8700 Surface Vertical Rod Exit Device w/ 300 Series Auxiliary Control & Pull Trim

The 80 Series exit device is ideal for environments that require strong and durable security solutions. Made to last the lifetime of the building, this device easily exceeds ANSI/BHMA Grade 1 requirements for cycle and strength and is available in rim, mortise, surface vertical and concealed vertical rod configurations. With a modular design, this device has been crafted to be maintenance-free and provide unsurpassed security for any facility.

Features

Features of 8700:
Two point latching (top & bottom with adjustability through center case)
Standard bottom latch compatible with latch track thresholds (by others)
Single and double door applications
ANSI/BHMA A156.3 - Grade 1
UL10C (Fire) and UL305 (Panic) Listed
Also available as HC8700 for hurricane-resistant applications, see Hurricane-Resistant section of the catalog
Rods are 1/2" (13mm) brass, bronze or stainless steel
Features of NB-8700:
Single point top latching
Top latchbolt projection adjustable through center case
ANSI/BHMA A156.3 - Grade 1
UL10C (Fire) and UL305 (Panic) Listed
Tripping potential removed - no bottom strike
Rods are 1/2" (13mm) brass, bronze or stainless steel

Specifications

Door Type: Wood or metal doors
Door Thickness: 1-3/4" (44mm) minimum thickness. Stile 4-1/2" (114mm) minimum stile width with trim and 3-1/2" (44mm) minimum stile without trim
Rail sizes as determined by door width: E Rail for 24" to 32" door widths, No cutting required for 32" door, F Rail for 33" to 36" door widths, No cutting required for 36" door, J Rail for 37" to 42" door widths, No cutting required for 42" door, G Rail for 43" to 48" door widths, No cutting required for 48" door
Strike: 646 Top Strike (Panic and Fire Rated); 624 Bottom Strike, 655 Fire Rated Bottom Strike
Dogging Feature: Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (
Mounting Fasteners: Supplied standard with wood and machine screws. Available with through-bolts and mortise (sex) nuts
Top & Bottom Bolt: Brass, Stainless steel
Device Centerline: 41" (1041 mm) for Standard Applications; 38" (965mm) for elementary schools
Door/Opening Height: Must be specified, 120" (3048mm) Max Door Opening - Non-fire rated doors, 96" (2438mm) Max Door Opening - Fire rated doors
Center Case Dimensions: 8-3/8" (213mm) × 2-5/8" (67mm)
Projection: Pushbar Neutral - 3" (76mm), Pushbar Depressed - 2-1/8" (54mm)

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

How to Install the SARGENT 8700 Series Surface Vertical Rod Exit Device

Sargent Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
871062Jx 04x LHR	37" to 42", Not Included,
871063Ex 32Dx RHR	24" to 32", Not Included, Satin Stainless Steel,
871063Jx 32x RHR	37" to 42", Not Included, Polished Stainless Steel,
871062Jx 10x RHR	37" to 42", Not Included,
871064Gx 32x LHR	43'' to 48", Not Included, Polished Stainless Steel,
871064Ex 10Bx RHR	24" to 32", Not Included,
871062Ex 32x LHR	24" to 32", Not Included, Polished Stainless Steel,
871063Ex 32Dx LHR	24" to 32", Not Included, Satin Stainless Steel,
871064Jx 10x RHR	37" to 42", Not Included,
871063Jx 32x LHR	37" to 42", Not Included, Polished Stainless Steel,
871064Ex 10BEx RHR	24" to 32", Not Included,
871062Jx 10x LHR	37" to 42", Not Included,
871064Ex 10Bx LHR	24" to 32", Not Included,
871063Fx 10Bx LHR	33" to 36", Not Included,
871064Fx 10Bx LHR	33" to 36", Not Included,
