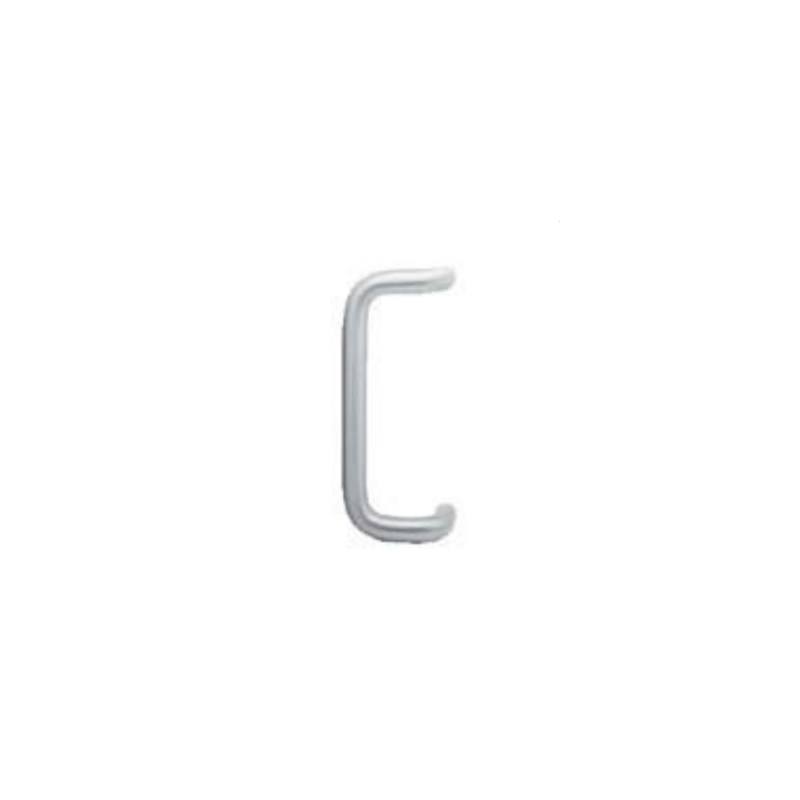

Reduced price! Sargent FM8700 ET Control Surface Vertical Rod Exit Device w/ 862, 863, 864 Pull, Auxiliary Control View larger

Sargent

Previous Next

Sargent FM8700 Surface Vertical Rod Exit Device, 2 Pt. Latching w/ 300 Series Auxiliary Control & Pull Trim

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$3,383.90

40% Off

$5,639.83

?

Details: Sargent FM8700 Surface Vertical Rod Exit Device, 2 Pt. Latching w/ 300 Series Auxiliary Control & Pull Trim

Features

  • 2-point latching exit device
  • UL Listed in compliance with ICC 500 (2014/2020) and FEMA P-361 (2015)
  • Specially machined rail and internal components make the FM8700 sturdier and more robust than standard products
  • Devices are ANSI/BHMA A156.3 - Grade 1
  • UL10C (Fire) Listed

Specifications

Doors and Frames
CECO DOOR and CURRIES StormPro Series Door Assemblies; 6'0" × 6'8" to 8' × 8' for pairs of fire rated doors, 3' × 6'8" to 4' × 8' for single fire rated doors (Requires 4 Thermal Pins)
Hardware
SARGENT FM8700 or 12-FM8700 Exit Device on both leaves or single door applications
Hinges
McKinney SP3386/SP3786 StormPro Tornado Resistant Butt Hinges, McKinney MCK-HG305 Continuous Hinges, Markar HG305 Continuous Hinges
Strikes
659 Top Strike in frame and 653 Bottom Strike furnished standard
Shim Kit
569 Shim Kit furnished standard
Rail sizes as determined by door width
F Rail for 36" door width, J Rail for 37" to 42" door widths, No cutting required for 42" door, G Rail for 43" to 48" door widths, No cutting required for 48" door
Dogging Feature
Hex key dogging available on non fired rated devices only
Electric Options
54- Outside Lever Monitoring Option
Mounting Fasteners
Supplied standard with machine screws and with throughbolts for the latch cases
Top & Bottom Bolt
Stainless steel
Device Centerline from Finished Floor
41" (1041mm) for Standard Applications, 38" (965mm) for elementary schools
Center Case Dimensions
8-3/8" (213mm) × 2-5/8" (67mm)
Projection
Pushbar Neutral - 3" (76mm), Pushbar Depressed - 2-1/8" (54mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

How to Install the SARGENT 8700 Series Surface Vertical Rod Exit Device
