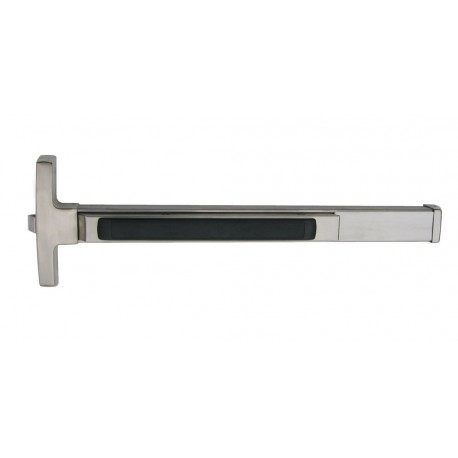

Sargent AD8500 Narrow Stile Rim Exit Device For Aluminum Door w/ ET Trim & Standard, Coastal, Studio Lever

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2,010.95

40% Off

$3,351.58

?

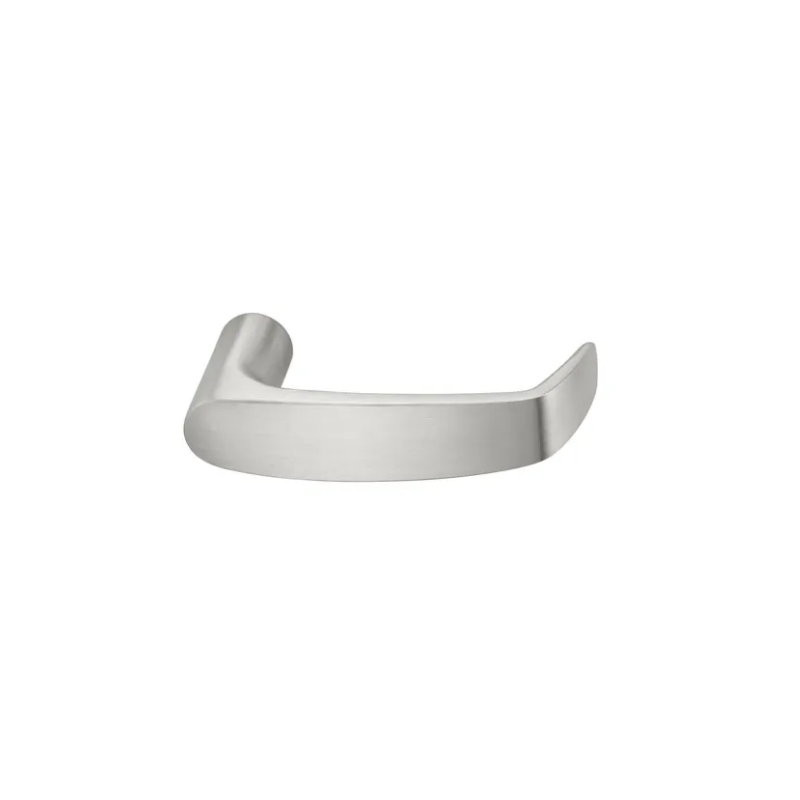

Details: Sargent AD8500 Narrow Stile Rim Exit Device For Aluminum Door w/ ET Trim & Standard, Coastal, Studio Lever

Designed for narrow stile applications, the 8500 Series features a rim bolt that combines quiet operation with solid security. Ideal for aluminum, metal and wood doors and/or single full-glass doors.

Features

  • Designed for narrow stile applications (e.g., aluminum frame full glass doors)
  • Single and double doors with mullion
  • Single point rim latching device
  • Quiet operation and solid security
  • Devices are ANSI/BHMA A156.3 - Grade 1
  • Available Windstorm-rated; order WS-

Specifications

Door Type
Aluminum Doors
Door Thickness
1-3/4" (44mm) minimum thickness
Stile
2" (114mm) minimum stile (Less Trim)
Rail sizes as determined by door width
Rails are available in 4 sizes, use door width to determine size needed
Rails will be factory cut to size, if door width is supplied
• E Rail for 24" to 32" door widths
• F Rail for 33" to 36" door widths
• J Rail for 37" to 42" door widths
• G Rail for 43" to 48" door widths
Strike
657 Strike, Supplied standard for panic devices
656 Strike, Supplied standard for panic devices
649 Strike, Supplied standard for fi ed rated devices
Dogging Feature
Hex key dogging standard; specify 16- for cylinder dogging (#41 cylinder supplied)
Electric Options
AL- Alarm
53- LX Latchbolt Monitor
54- Outside Lever Monitoring
55- Request-to-Exit Signal - Rail Monitoring
Mounting Fasteners
Supplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts
Latch Bolt
Stainless steel, 3/4" (19mm) throw
Device Centerline from Finished Floor
41" (1041 mm) for Standard Applications
Center Case Dimensions
8-5/16" (211mm) × 1-1/16" (27mm)
Projection
Pushbar Neutral — 3" (77mm)
Pushbar Depressed — 2-1/8" (54mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

How to Install SARGENT 8500 and 8800 Exit Device: 53- Latchbolt Monitoring Adjustment

Changing Spindles on Our ET Lever Trims - Technical Product Support

How to Change the Function on a SARGENT ET Lever Trim

How to Change the Locking Slide on a SARGENT ET Lever Control

Unboxing a 59- Electroguard Delayed Egress Exit Device - Technical Product Support

59- Electroguard Diagnostic LEDs - Technical Product Support
