  5. Schlage L9493EL-P-12-N-626 RH KD Series Grade 1 Mortise Lock W/ Standard Knob/Lever & Escutcheon Trim, Single Cylinder, Deadbolt

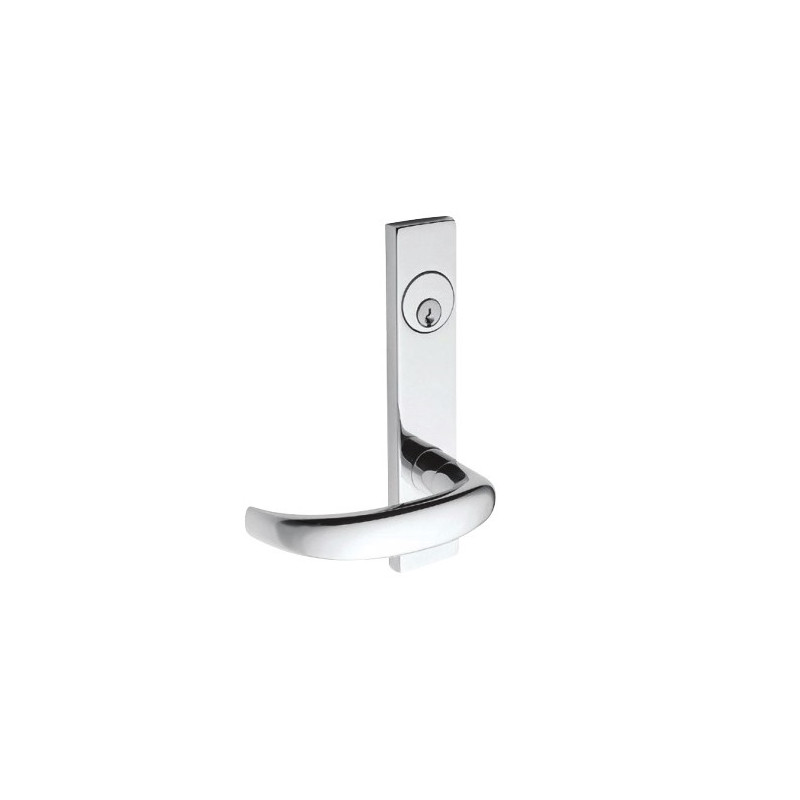

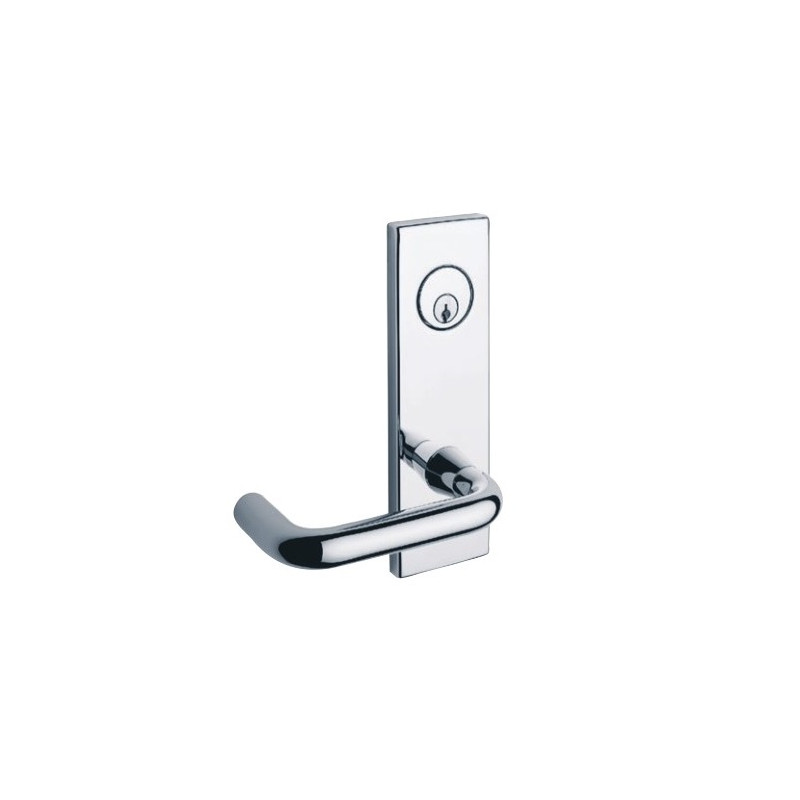

Reduced price! Schlage L Series Mortise Lock W/ Standard Knob/Lever & Escutcheon Trim, Single Cylinder, Deadbolt View larger

Schlage Commercial

Previous Next

Schlage L9493EL-P-12-N-626 RH KD Series Grade 1 Mortise Lock W/ Standard Knob/Lever & Escutcheon Trim, Single Cylinder, Deadbolt

L9493EL-P-12-N-626 RH KD

Lock Type
Standard
Cylinder Type
Conventional 6-Pin, Keyed 5
Lever & Knob Type
Standard 12 Lever
Finish
Satin Chrome
Handing
Right Handed
Keying
Keyed Different
edit options

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Master Key:-

$1,078.81

30% Off

$1,541.16

?
?

Details: Schlage L9493EL-P-12-N-626 RH KD Series Grade 1 Mortise Lock W/ Standard Knob/Lever & Escutcheon Trim, Single Cylinder, Deadbolt

Designed for security, beauty, and flexibility, L Series features the most comprehensive list of functional, design, and trim options Schlage has to offer. Able to withstand the rigors of daily use without fail, these locks will stand the test of time and can serve the needs of all opening types.You can use L Series as part of a common aesthetic. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or campus. L Series does all this while lowering the total cost of ownership through maintenance ease, key system flexibility and beautiful finishes that are made to last.

Schlage is committed to helping ensure safer classrooms and better privacy solutions with a family of lock status indicator trims. The large windows and 180-degree visibility of L Series indication trim lets you Know It's Locked even from across the room ensuring classroom, security, and privacy needs are met.

Features

  • Tested and certified to ANSI/BHMA Grade 1 operational and security standards
  • UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
  • Door thickness: 1-3/4" (44 mm) standard
  • Deadbolt features include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock access by removing levers
  • Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
  • Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
  • Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
  • Lever styles constructed of solid brass or solid stainless steel offer a strong-yet-comfortable feel
  • 12 available finishes (depending on lever style) with options for antimicrobial coating
  • Locking lever bushing eliminates exposed screws on inside levers
  • 180-degree visibility indicator trim option for locked/unlocked status available for most functions. Available in both A style sectional and N style escutcheon designs
  • Lock status indication trim option uses red and white backgrounds to ensure quick readability for color blind individuals
  • Two piece anti-friction tongue in latch bolt reduces wear
  • Breakaway spindle keeps door secured in the event of vandalism
  • Field reversible latch bolt allows handing change without opening case
  • Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
  • ANSI/BHMA A156.13-2017 Series 1000, Grade 1 operational and security
  • Complies with ICC A117.1 Accessible and Usable Buildings and Facilities
  • UL 10C and CAN/ULC-S104 listed 3-hour fire door (except L9076 and L9077)
  • All levers with a return to door of 1/2" (64 mm) or less comply (formerly Title 19, California State Fire Marshal Standard)
  • Miami-Dade NOA and Florida Building Commission listings
  • Texas Department of Insurance (TDI) for impact and non-impact applications
  • Meets BAA (Buy American Act)

Specifications

Case
Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
Case size
4-7/16" × 6-1/16" × 1" (113 mm × 154 mm × 25 mm)
Spacing
knob or lever to cylinder 3-7/8" (98 mm); knob or lever to thumbturn hub 2-11/16" (68 mm)
Door thickness
1-3/4" (44 mm) standard
L escutcheon
7-15/16" × 1-3/4" × 7/16" (202 mm × 44 mm × 11 mm); cold-forged brass and Stainless Steel
N escutcheons
7-7/8" × 2-1/2" × 7/16" (200 mm × 64 mm × 11 mm); heavy wrought reinforced brass, and Stainless Steel
Backset
2-3/4" (70 mm) only
Armor
Standard - 1-1/4" × 8" × 7/32" (32 mm × 203 mm × 6 mm)
Deadbolt
1" (25 mm) throw stainless steel
Latch
3/4" (19 mm) throw stainless steel with anti-friction tongue
Strike
ANSI curved lip strike 1-1/4" × 4-7/8" (32 mm × 124 mm) standard; dust box included
Strike lip length
1-3/16" (30 mm)

Applications

  • Commercial Real Estate
  • Healthcare
  • School & Educational Facilities
  • Retail

Downloads

Videos

Available Model Numbers and Combinations

Model/SKUAttributes
L9453-P-ACC-L-606 LH MK Standard, Entrance/office lock with deadbolt, Conventional 6-Pin, Keyed 5, Accent Lever, Satin Brass, Left Handed, Master Keyed
L9465-L-42-L-619 KD Standard, Closet/Storeroom Lock, Standard 42 Knob, Satin Nickel, Keyed Different
L9473-C6-06-N-605 MK Standard, Dormitory/bedroom lock, Concealed Mortise 6-Pin, Standard 06 Lever, Bright Brass, Master Keyed
LV9485-C-LAT-N-605 KA Vandlgard, Concealed Mortise 6-Pin, Keyed 5, Latitude Lever, Bright Brass, Keyed Alike
L9473-C6-06-N-612 KD Standard, Dormitory/bedroom lock, Concealed Mortise 6-Pin, Standard 06 Lever, Satin Bronze, Keyed Different
L9493EU-W-ACC-N-643e LH MK Standard, Accent Lever, Aged Bronze, Left Handed, Master Keyed
L9473-P-ACC-N-622 RH KA Standard, Dormitory/bedroom lock, Conventional 6-Pin, Keyed 5, Accent Lever, Matte Black, Right Handed, Keyed Alike
L9492EL-C-02-N-625 MK Standard, Concealed Mortise 6-Pin, Keyed 5, Standard 02 Lever, Bright Chrome, Master Keyed
LV9453-C6-41-L-613 KD Vandlgard, Entrance/office lock with deadbolt, Concealed Mortise 6-Pin, Standard 41 Knob, Oil Rubbed Bronze, Keyed Different
LV9493EU-C-AST-N-622 LH KD Vandlgard, Concealed Mortise 6-Pin, Keyed 5, Asti Lever, Matte Black, Left Handed, Keyed Different
L9465-R-OME-N-605 MK Standard, Closet/Storeroom Lock, Full Size Interchangeable Core, Omega Lever, Bright Brass, Master Keyed
L9480-P6-05-L-622 KA Standard, Storeroom lock with deadbolt, Conventional 6-Pin, Standard 05 Lever, Matte Black, Keyed Alike
LV9456-P6-MER-N-613 RH MK Vandlgard, Conventional 6-Pin, Merano Lever, Oil Rubbed Bronze, Right Handed, Master Keyed
LV9492EU-R-03-L-630 KA Vandlgard, Full Size Interchangeable Core, Standard 03 Lever, Satin Stainless Steel, Keyed Alike
L9493EL-P-12-N-626 RH KD Standard, Conventional 6-Pin, Keyed 5, Standard 12 Lever, Satin Chrome, Right Handed, Keyed Different
