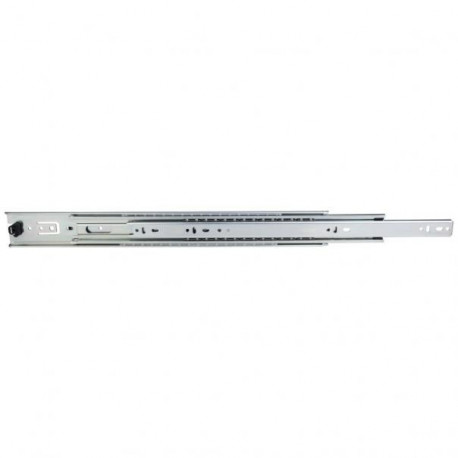

Hardware Resources 300FU Extra Heavy Duty Side Mount Ball Bearing Slides

Model: 300FU

Write a review

Item is normally in stock and ships out within 1-2 Business days (excluding transit time). If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Details: Hardware Resources 300FU Extra Heavy Duty Side Mount Ball Bearing Slides

Features

1/2" side spacing
Non-handed trigger disconnect release
2" profile height
Lubricated steel ball bearings
1.5 mm × 1.5 mm × 1.5 mm cold rolled steel material
Clear zinc electroplated finish
6.3 mm Euro screw or 8 × 7/16" truss head screw is recommended
Perfect slide for file drawers, wide drawers or any application where weight is a concern
Grade 1 ANSI/BHMA certified with 200 lb. load rating
Synthetic rubber hold-in detent prevents bounce back and roll out

Specifications

Adjustable: Yes
Load Rating: 200 lb
Extension: Full Extension
Brand: Hardware Resources
Finish: Zinc
Height: 2"
Mount Type: Side Mount
Warranty Period: Limited Lifetime

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
