Details: Topgreener TDOS5-JD In-Wall PIR Occupancy/Vacancy Dual Load Motion Sensor Switch, No Neutral Wire Required - White

Dual Load Ocuppancy & Vacancy Sensor Switch

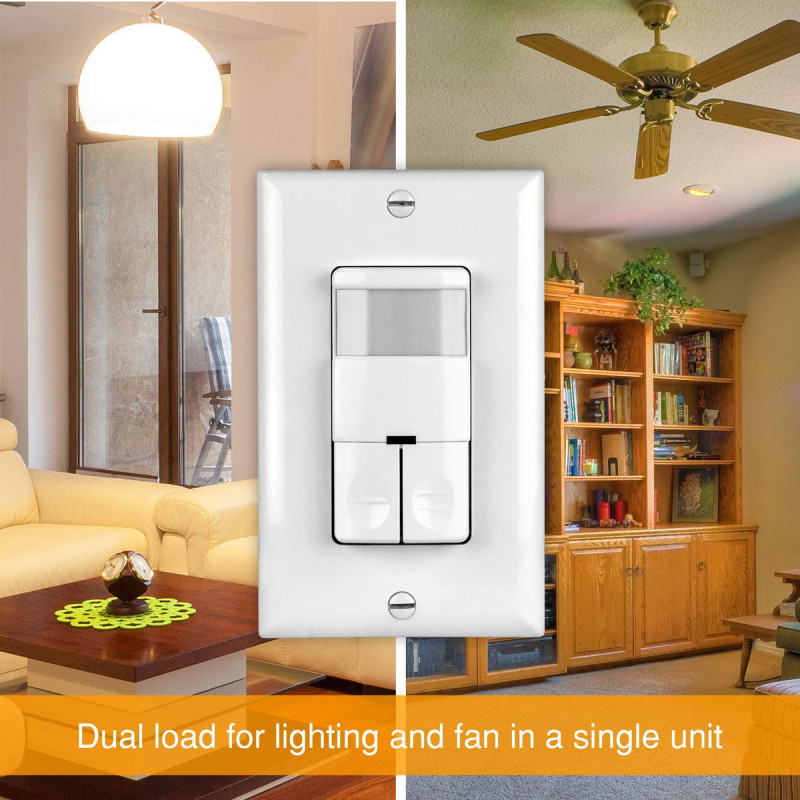

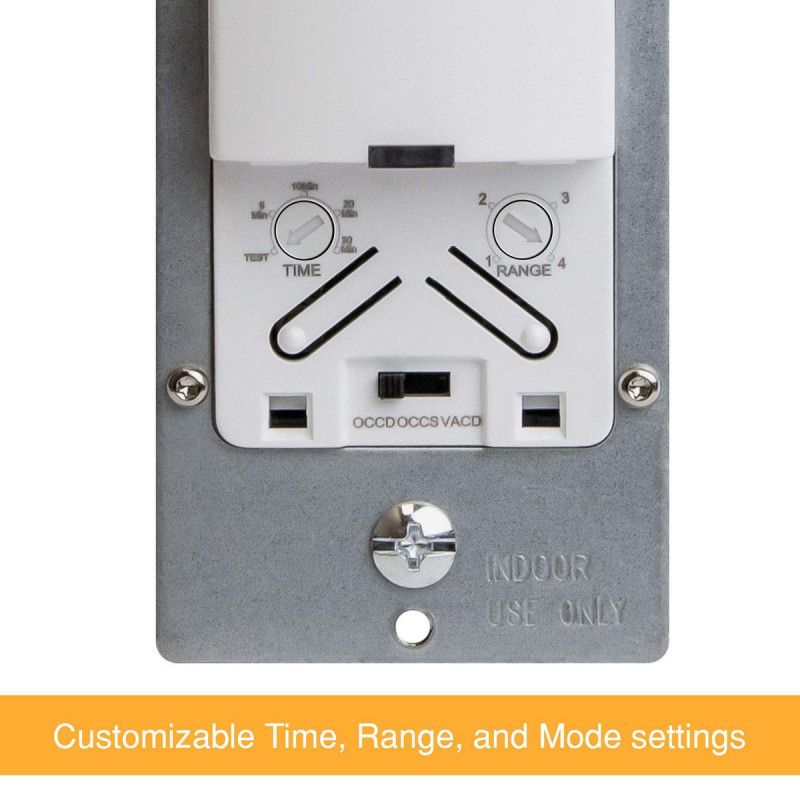

TOPGREENER dual load occupancy/vacancy PIR sensor switch provides a reliable solution for dual load applications such as lighting and fan combinations. The adjustable modes and settings allow you to customize the sensor to fit your needs. This unit features 3 operating modes (single occupancy, dual occupancy, and vacancy modes). The adjustable settings are time delay, range detection, and ambient light level. It is suited for residential and commercial use.

Dual Occupancy Mode (OCCD)

In this mode, both load connections are automatically turned on when motion is detected and turned off after the time delay has expired. This is especially convenient when entering a room with your hands full, such as a restroom, laundry room, garage, etc.

Single Occupancy Mode (OCCS)

In this mode, the primary load connection is automatically turned on when motion is detected and turned off after the time delay has expired. The secondary load can only be turned on manually and automatically turns off once the time delay expires. Best when used with lighting and fan combinations.

Vacancy Mode (VACD)

In this mode, both loads must be manually turned on by pressing their corresponding buttons. The loads automatically turn off when the time delay has expired. The loads will also turn bac
