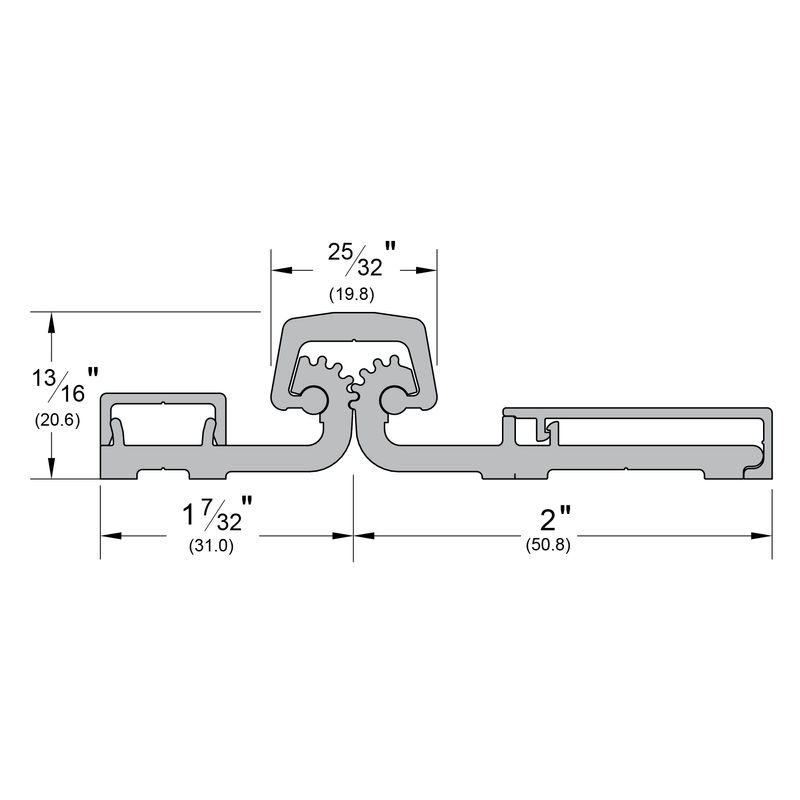

Pemko FS_CP Full Surface Center Pivot Continuous Geared Hinge View larger

Pemko

Previous Next

Pemko FS_CP Full Surface Center Pivot Continuous Geared Hinge, Capacity-Heavy Duty Grade 1, 3" Bearing Spacing

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$300.16

?

Details: Pemko FS_CP Full Surface Center Pivot Continuous Geared Hinge, Capacity-Heavy Duty Grade 1, 3" Bearing Spacing

The FS_CP Full Surface Center Pivot Continuous Geared Hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This hinge is available in standard, heavy, and extra heavy duty models

Features

  • Standard, heavy duty versions available
  • Applied to exposed surfaces of the door and frame
  • Easily replace butt hinges with no frame adjustments necessary
  • For retrofit applications
  • Used to replace butt hinges
  • Easy to install on exposed surfaces of the door and frame
  • Hollow metal door and frame manufacturers? standard
  • Special hinge reinforcements are not required
  • Removal of hinge reinforcements in the door and frame is not advised
  • Certifications:- Health Product Declaration (HPD), UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies, ANSI/BHMA Standard A156.26

Specifications

Grade
Grade 1
Hinge Material
Aluminum
Hinge Mounting Type
Full Surface
Hinge Strength
Heavy Weight
Handing
Non-handed
Fastener
Teks, Thru Bolts
Fastener Type
Self Drilling, Thru Bolts
Maximum Door Thickness
1 3/4"
Minimum Door Thickness
1 3/4"
Maximum Door Width
4'
Maximum Hinge Length
10'
Minimum Hinge Length
79"
Maximum Swing
180 degree
Minimum Hinge Clearance
1/16"

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
