  6. Camden Door Control CM-9800 Series Surface Mount LED Illuminated Push/Exit Switch

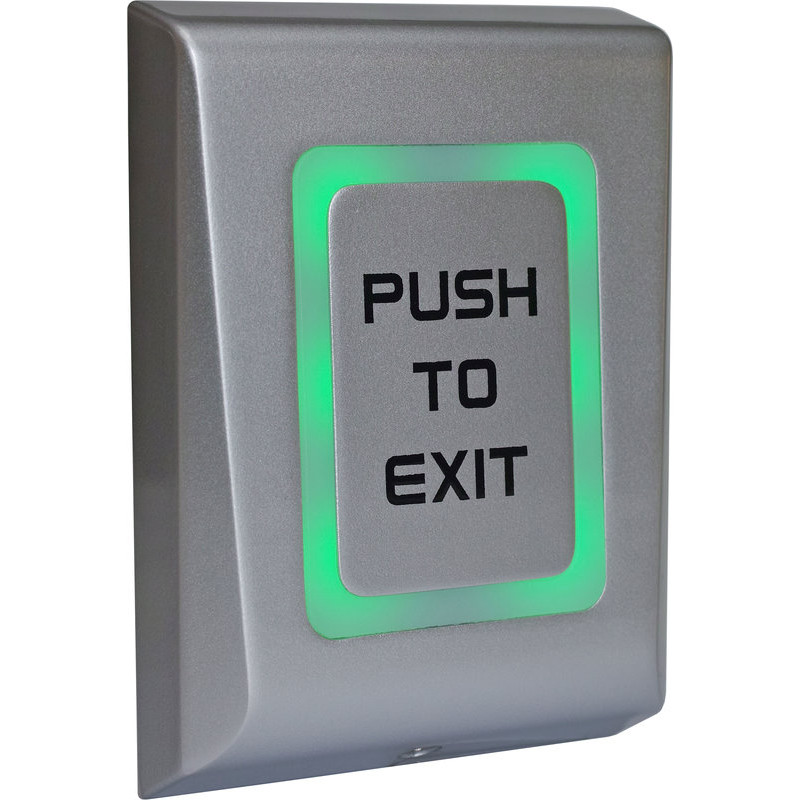

Reduced price! Camden CM-9800/7 Surface Mount LED Illuminated Push/Exit Switch View larger

Camden Door Controls

Previous Next

Camden Door Control CM-9800 Series Surface Mount LED Illuminated Push/Exit Switch

Item is normally in stock and ships out within 3-5 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$146.25

35% Off

$225.00

Details: Camden Door Control CM-9800 Series Surface Mount LED Illuminated Push/Exit Switch

CM-9800 Series surface mount capacitive touch switches, with LED illumination, are vandal and weather resistant with IP 66 rating. The units feature a cast metal design and an adjustable 0 to 60 second relay timer. The CM-9800 has an external input, so that the switch illumination may be activated by either the switch status or the door (locked) status.

The large surface area of the capacitive switch is easy to activate, with only a light touch, and the large LED light illumination enables the switch to be highly visible in low light conditions.

Features

  • Capacitive 'light touch' technology. No moving parts
  • ADA and ROHS Compliant
  • Weather and vandal resistant. IP 66 rated
  • Large LED Light Ring, RED, GREEN/ORANGE/NONE
  • Switch status or door status illumination (External input)
  • Hold Open relay timer, selectable 0 to 60 seconds
  • Heavy duty Form 'C' relay, rated 2 Amps
  • Tamper alarm
  • 12/24V, AC/DC

Specifications

Input Voltage
12/24V, AC/DC.
Current Draw
Max.65mA.
Relay Output
2 A, 24 VDC / 120 VAC.
Set Relay Time
0.5 to 60 Seconds or toggle (ON/OFF).
LED Illumination
Red, Green, Orange.
LED Control
Yes, by DIP switch.
Tamper
Yes.
Back Light On/Off
Yes, by DIP switch.
Buzzer On/Off
Yes, by DIP switch.
Operating Temperature
minus 4 Degree F to 122 Degree F(minus 20 Degree C to 50 Degree C).
Housing
Die-cast aluminum alloy.
Dimensions
4-9/16" H X 3-3/8" W X 13/16" D(116mm X 86mm X 21mm).

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKUAttributes
CM-9800/7
CM-9800/3
