Reduced price! PDQ 4200 Serise Exit Device, Surface Vertical Rod, UL Panic Listed, Hex Key Dogging View larger

PDQ Locks

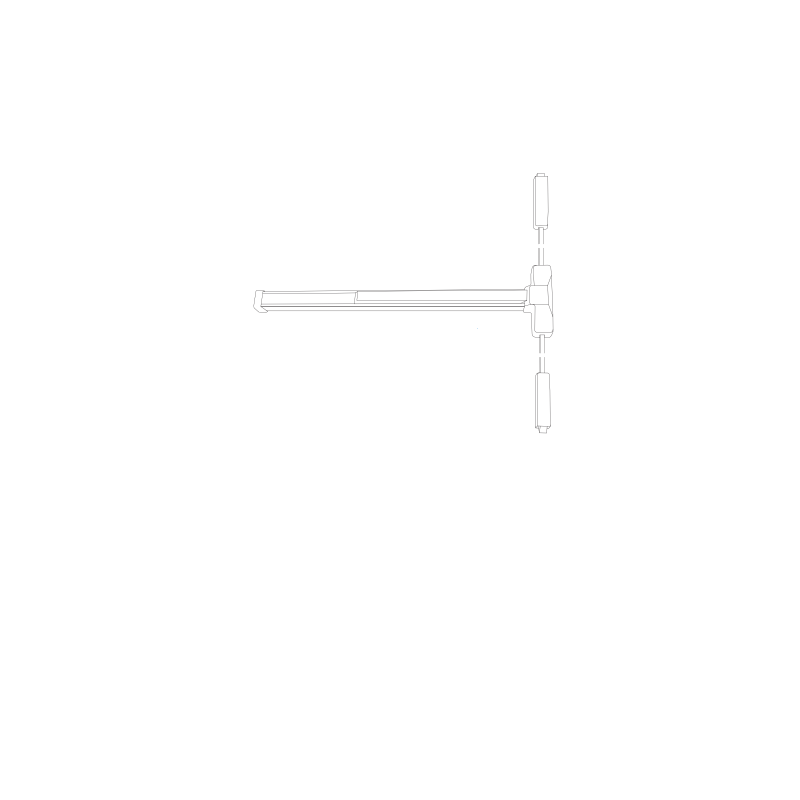

PDQ 4200V Series Surface Vertical Rod Exit Device, UL Listed, Hex Key Dogging

4200-

Item normally ships out within 1-2 Weeks (excluding transit time). If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$330.00

40% Off

$550.00

Details: PDQ 4200V Series Surface Vertical Rod Exit Device, UL Listed, Hex Key Dogging

Specifications

CHASSIS
Corrosion resistant plated steel
RAIL
Heavy gauge steel or stainless steel
LATCH
SURFACE VERTICAL ROD (V) - Top Latch-Pullman with dead latching 5/8" throw-Bottom Latch- Pullman with 5/8" throw, held retracted during door swing
BACKSET
2-3/4" Backset Compatible with 161 prep
HAND
Device is non-handed
DOGGING
Hex key dogging standard, Dogging not available on fire listed devices
MINIMUM STILE WIDTH
4-1/4"for device (exit only), Minimum stile requirements with trim varies by trim type
DOOR THICKNESS
1-3/4" standard
DOOR WIDTH
Standard for 3 ft doors, option available for doors up to 4'
FINISHES
605 - Polished Brass, 626 - Satin Chrome, 630 - Satin Stainless Steel, 689 - Aluminum, 695 (N/A)- Duro Bronze, 696 - Gold, Optional Anti Microbial Coating available on 626 and 630 finishes only
FASTENERS
Includes machine screws and wood screws, Sex nuts supplied with all Fire Listed devices
VERTICAL RODS
Stock for 7' doors standard. Extension rods available for doors up to 10'.
WARRANTY
Five (5) year limited warranty
CERTIFICATIONS,
LISTINGS, COMPLIANCES
UL 305 listed for "Panic" , UL listed for "Fire Exit Hardware" labeled for up to 1-1/2 hours, Complies with ADA (Americans with Disabilities Act) and ICC/ANSA 117.1 for Accessible and Usable Buildings, Meets requirements of the Buy America Act

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
  • Self Storage Units
  • Storage Lockers
  • Sheds, Workshops & Garages
  • Trailers, Vans & Moving Trucks

Available Model Numbers and Combinations

Model/SKUAttributes
4200-V-689 Aluminum
4200-V-695 Duro Bronze
4200-V-696 Gold,
4200-V-630 Satin Stainless Steel
4200-V-605
4200-V-626 Satin Chrome,
4200-VA-689 Aluminum
4200-VA-695 Duro Bronze
4200-VA-696 Gold,
4200-VA-630 Satin Stainless Steel
4200-VA-605
4200-VA-626 Satin Chrome,
