Details: Precision 2200 Surface Verticle Rod Exit Device - Reversible, Wide Stile

Features

Doors

For all types of single and double door applications. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide by 10'-0" high openings. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide by 7'-0" high openings.

Device

Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Functions

Functions are field selectable. The device is furnished for a desired function if specified. If not specified the "03" function is furnished standard.

Base Material

The Covers, Touchbar, Device Channel, Lock/Hinge Side Filler, Vertical Rods and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis

Investment Cast Steel, Zinc Dichromated.

Top Latchbolt

Stainless Steel, Deadlocking, 3/4" throw.

Bottom Bolt

Steel plated, independent action 5/8" throw, with adjustment range to suit 3/4" door undercut.

Top Strike

No. S300 Surface applied, Investment Cast Stainless Steel, Black Powder Coated furnished standard.

Bottom Strike

No. S460, Flush mounted, Steel, Black Powder Coated.

Dogging

1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.

Touchbar Height

39-15/16” from floor standard. Specify required height if other than standard.

Reversible

Reversible for all functions and trims. Standard packing RHRB.

UL Listed

Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 33. Conforms to UL10C and UBC 7-2.

ANSI/BHMA

Devices are BHMA certified ANSI 156.3, Grade 1.

Finishes

605, 606, 612, 613, 622, 625, 626W, 628, 630, 690

Cylinders

Rim type, not furnished standard. Specify when required.

Stile Width

Stainless Steel, Deadlocking, 3/4" throw.

Less Bottom Rod (LBR) Option

Specify suffix "LBR" (e.g. 2208LBR). See UL FIRE LABEL RATING chart on page 39. Fire Rated Devices include FB277 Fire Bolt Assembly.

Retrofit Applications

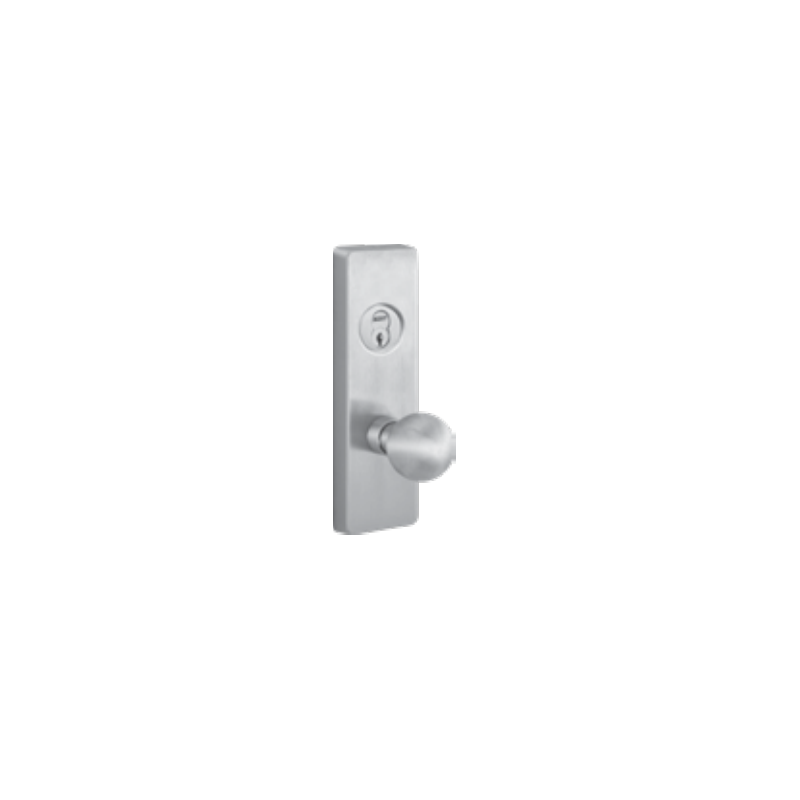

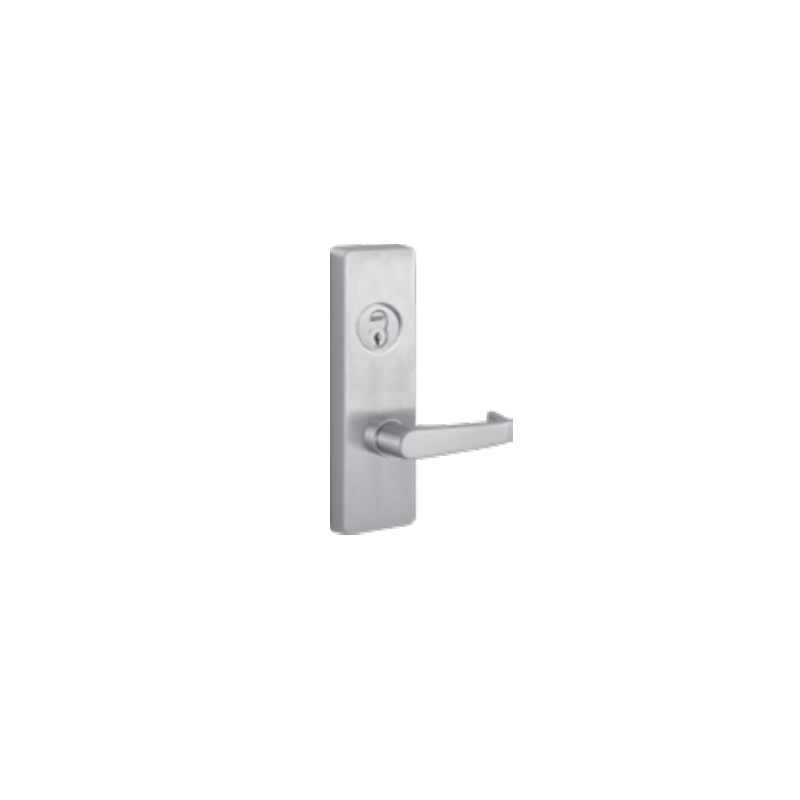

The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers' mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix "R" (e.g. 2208 R4908A).

Apex 22 Series - Reversible

The 22 Series Device is designed to be compatible with many manufacturers' Access Control exterior trim. The device incorporates a center driven cam to receive the tailpiece of the access control product. The tailpiece rotation required to retract the latch is a minimum of 50 degrees.
