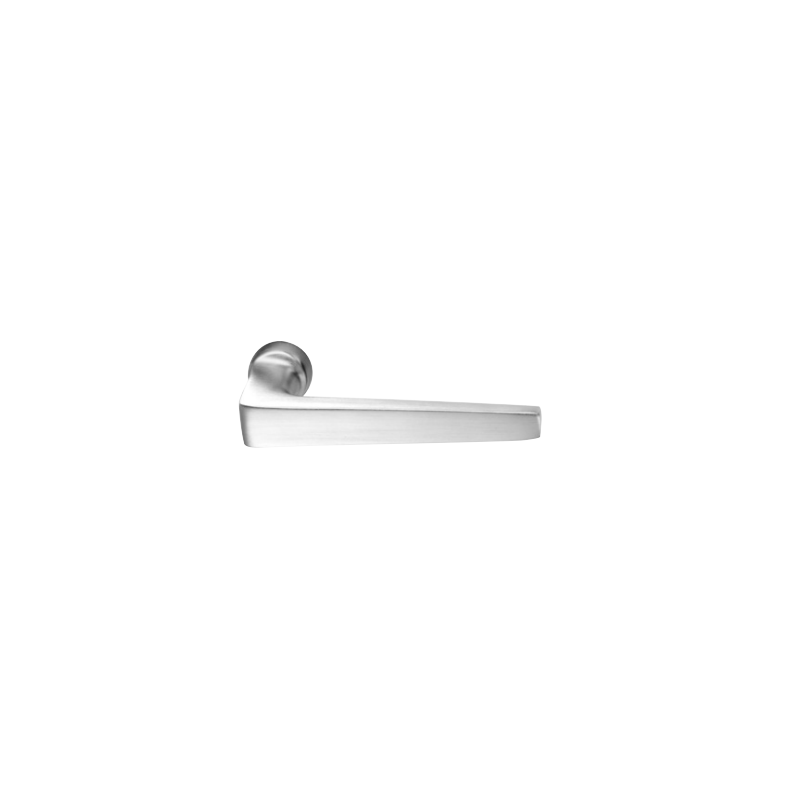

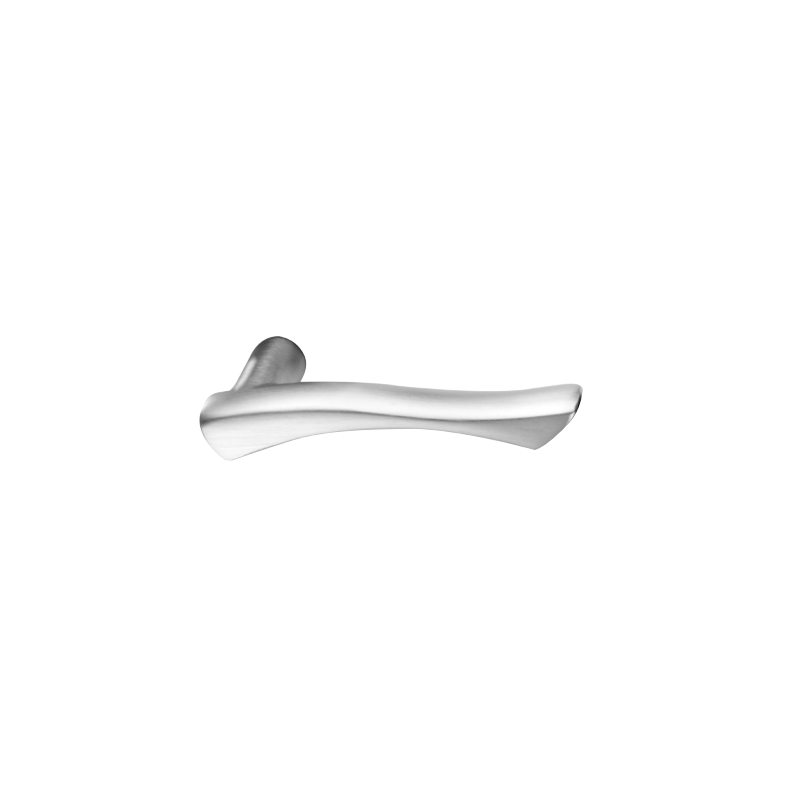

Sargent 8400 Narrow Stile Concealed Vertical Rod Exit Device w/ ET Trim & Standard, Coastal, Studio Lever

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2,647.59

40% Off

$4,412.65

?

Details: Sargent 8400 Narrow Stile Concealed Vertical Rod Exit Device w/ ET Trim & Standard, Coastal, Studio Lever

The 80 Series exit device is ideal for environments that require strong and durable security solutions. Made to last the lifetime of the building, this device easily exceeds ANSI/BHMA Grade 1 requirements for cycle and strength and is available in rim, mortise, surface vertical and concealed vertical rod configurations. With a modular design, this device has been crafted to be maintenance-free and provide unsurpassed security for any facility.

Features

  • Designed for narrow stile applications (e.g., full glass doors)
  • Concealed rods for security and aesthetics
  • UL10C (Fire) and UL305 (Panic) listed
  • Specify NB- for less bottom rod
  • NB- Devices allows free access for wheelchairs and carts. No bottom strike eliminates tripping potential
  • All functions determined by outside trim
  • Devices are ANSI/BHMA A156.3 - Grade 1

Specifications

Door Type
Hollow Metal Doors (MD), Hollow or extruded aluminum doors (AD)
Door Thickness
1-3/4" (44mm) minimum thickness
Stile
1-3/4" (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" (35mm) square
Rail sizes determined by door width
E Rail for 24" to 32" door widths, F Rail for 33" to 36" door widths, J Rail for 37" to 42" door widths, G Rail for 43" to 48" door widths
Strike
650 Top Strike & 606 Bottom Strike (Panic and Fire Rated) [MD], 640 Strike for Top & Bottom (AD)
Dogging
Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (
Mounting Fasteners
Supplied standard with machine screws
Top Bolt
Stainless steel
Device Centerline from Finished Floor
41" (1041mm) for Standard Applications, 38" (965mm) for elementary schools
Door/Opening Height
Must be specified, 120" (3048mm) Max Door Opening
Center Case Dimensions
8-3/8" (213mm) × 2-5/8" (67mm)
Projection
Pushbar Neutral - 3" (76 mm), Pushbar Depressed - 2-1/8" (54mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

56- Latch Retraction in Power Mode

56- Latch Retraction in Timer Mode

Unboxing a 59- Electroguard Delayed Egress Exit Device

59- Electroguard Diagnostic LEDs

How to Change the Function on a SARGENT ET Lever Trim

Available Model Numbers and Combinations

Model/SKUAttributes
AD8473-24VGx ETMHx WSPx RHR 43'' to 48", MH Odeon, White Suede Powder Coat,
MD8410Lx ETMIx 10Bx RHR MI Aventura,
MD8410Lx ETMWx 04x RHR MW Aventura,
MD8440Gx ETNFx 10Bx RHR Dummy Trim (Lever Rotates), 43'' to 48", NF Aventura,
MD8410Lx ETMNx BSPx LHR MN Odeon, Black Suede Powder Coat,
AD8440Jx ETJx 10BEx RHR Dummy Trim (Lever Rotates), 37" to 42", J Lever,
MD8474-12VGx ETMMx 32x RHR 43'' to 48", Polished Stainless Steel,
AD8474-12VLx ETEx 09x RHR E Lever,
MD8474-12VGx ETMOx 04x RHR 43'' to 48",
MD8410Lx ETMVx 09x LHR
MD8440Lx 10Bx LHR Dummy Trim (Lever Rotates),
AD8440Gx ETEx 10x RHR Dummy Trim (Lever Rotates), 43'' to 48", E Lever,
MD8406Lx ETRx 32Dx RHR Key Operates ET, Rockport Lever, Satin Stainless Steel,
MD8443Jx ETMPx 10BLx RHR Key engages/disengages Lever, 37" to 42", MP Centro,
AD8473-12VLx 03x RHR
