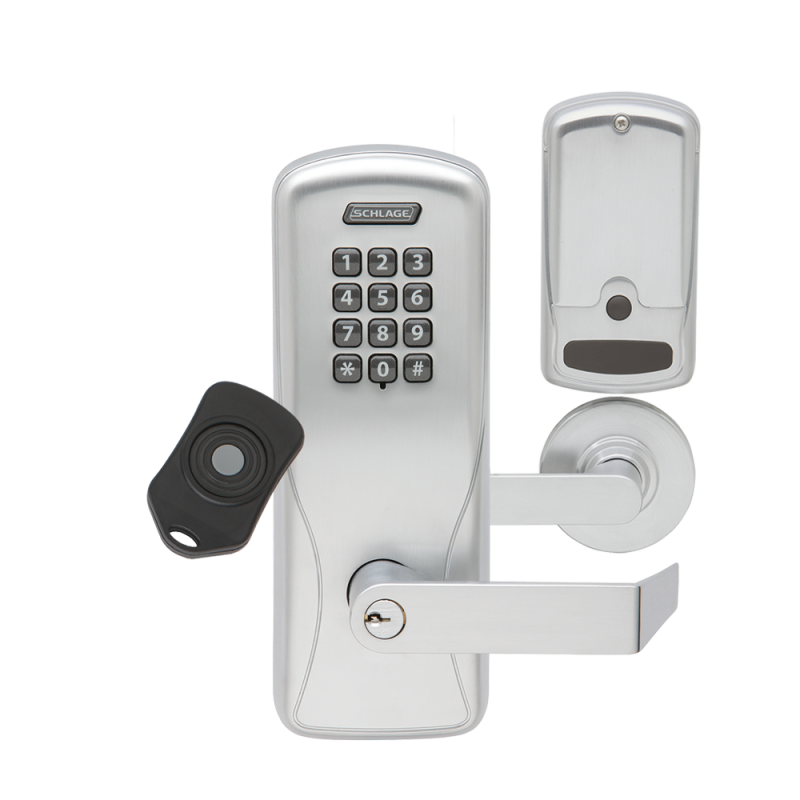

Schlage CO-220-MS Standalone Classroom Lockdown Lock - Mortise Chassis

CO-220-MS

This product is no longer in stock

Item is normally in stock and ships out within 2-3 Business days (excluding transit time). If out of stock it can take up to 2-4 weeks (excluding transit time).Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

This item has been discontinued

Details: Schlage CO-220-MS Standalone Classroom Lockdown Lock - Mortise Chassis

CO-220 is an offline classroom lockdown solution that enables the immediate lockdown of up to ten CO-220 locks should an emergency arise. Using a remote fob worn by the teacher, lockdown can occur within two seconds of pressing the fob button. An LED visual indicator on the lock continually signals lockdown status so that teachers and students can stay a safe distance from the door. This provides a code compliant solution that always enables free egress even in lockdown mode. CO-220 is simple to manage and less costly than a networked system. It is a manually programmed or computer managed solution and user rights are stored on the lock. The Schlage Utility Software (SUS) mobile app and SUS-A cable, used in conjunction with access control software, allows you to easily add or delete users, set auto lock and unlock schedules, and retrieve audits. Credential support includes PIN, proximity, and magnetic stripe; multi-factor authentication (card + PIN) is available for additional security. CO-220 can work in the same offline system as AD-200, CO-200 and CT5000.

Features & Benefits

Security

  • Lockdown capability via fob worn by teacher for up to 10 paired locks within range
  • LED light visibly confirms lockdown status so teacher can stay a safe distance from the door in an emergency situation
  • Always free egress, even in lockdown mode
  • Only paired fob, key or administrative/safety official credentials can override lockdown mode
  • Multi-factor authentication capability when installed with a +keypad reader
  • Key override: standard. Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys

Efficiency

  • Updates can be made immediately at the door using keypad or SUS Android mobile app and cable
  • Supports holidays and time zones to enable auto lock and unlock during specified periods

Convenience

  • Up to 2 years battery life on lock and fob for easy maintenance
  • Utilize existing master key system
  • Works with same credential used on the building perimeter

Electronic Specifications

Fob capability

  • One pre-paired remote lockdown fob shipped with each lock
  • Range of up to 75' on secured side of door; 25' on exterior side depending on building construction
  • Fob pairs with up to ten CO-220 locks within range

Reader options

  • Proximity (125 kHz)
  • Proximity reader with keypad
  • Keypad only

User verification

  • Capable of credential verification <1 second
  • Up to 2,000 users with audit trail of up to 2,000 events; dependent on access control software

Programming interface

  • Schlage Utility Software (SUS) mobile app transfers programming information from computer to lock using the SUS-A cable
  • Schlage Express PC-based software or PACS alliance solutions provide access control management for users, audits and locks

Additional Features

  • Lock battery life - up to 2 years with 4 AA batteries
  • Fob battery life - up to 2 years with a CR2025 coin cell battery
  • Exterior Temp: -31° to 151°F (-35° to 66°C)
  • Interior Temp: 32° to 120°F (0° to 49°C) (battery)
  • Humidity: 0 - 100% non-condensing

Functions

Classroom/Security (75)

  • Operates like a standard classroom/storeroom (70) function - lock is normally secure
  • When remote fob is pressed to initiate immediate local lockdown, all normal credentials are rejected and only an authorized passthrough credential will allow access

Certifications

  • Mortise - ANSI/BHMA A156.13, Series 1000, Grade 1
  • UL 10C 3 hour
  • FCC Part 15
  • Industry Canada (IC)
  • ADA compliant
  • TDI DR-464, DR-465
  • FL12400, FL4613, FL3905, FL1592, FL13356 and FL14482
