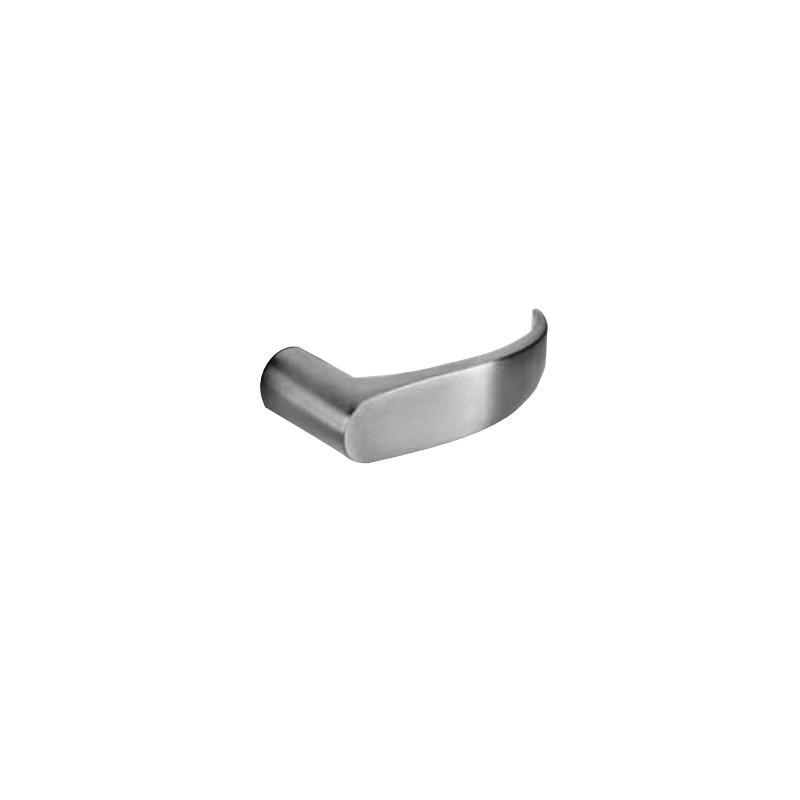

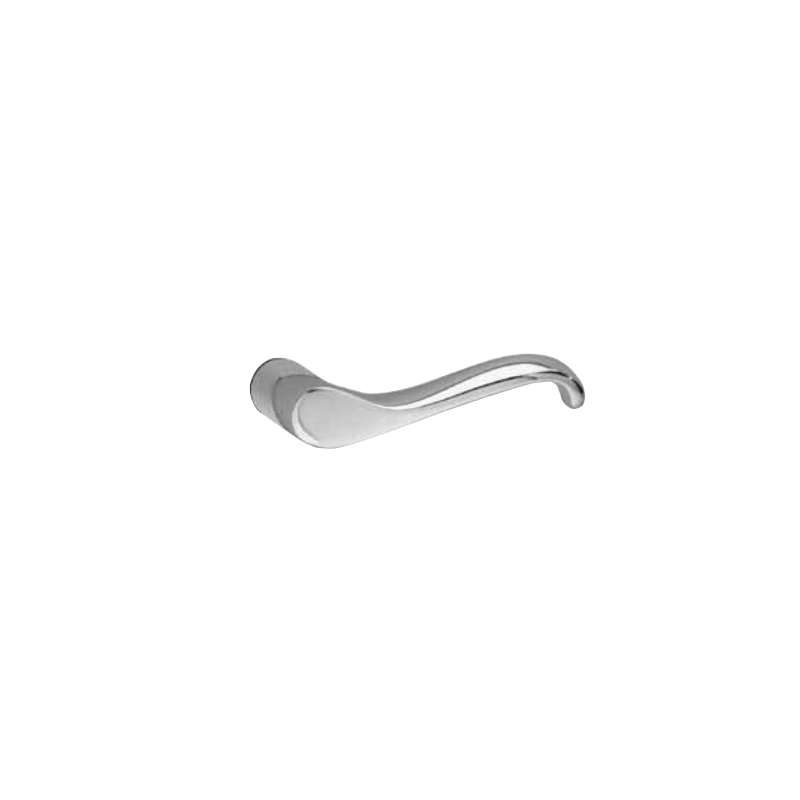

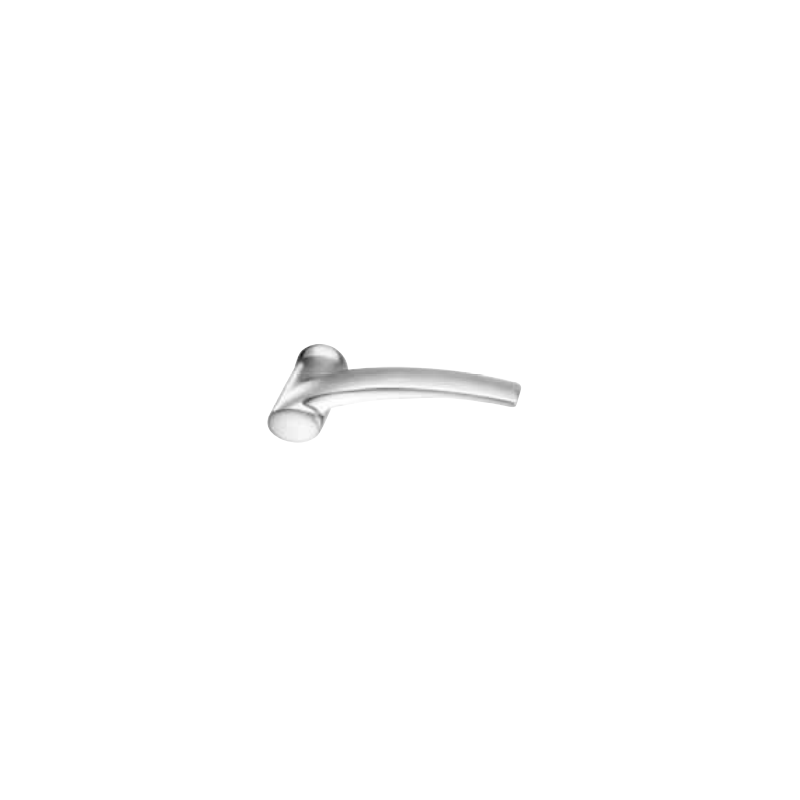

> >>>>Sargent FM8700 Surface Vertical Rod Exit Device, 2 Pt. Latching w/ ET Trim & Standard, Coastal Lever, Studio Lever
Reduced price! Sargent FM8700 ET Control Surface Vertical Rod Exit Device w/ Standard, Coastal Lever View larger

Sargent

Previous Next

Sargent FM8700 Surface Vertical Rod Exit Device, 2 Pt. Latching w/ ET Trim & Standard, Coastal Lever, Studio Lever

Item normally ships out within 4-6 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$2,644.80

40% Off

$4,408.00

?

Details: Sargent FM8700 Surface Vertical Rod Exit Device, 2 Pt. Latching w/ ET Trim & Standard, Coastal Lever, Studio Lever

Features

  • 2-point latching exit device
  • UL Listed in compliance with ICC 500 (2014/2020) and FEMA P-361 (2015)
  • Specially machined rail and internal components make the FM8700 sturdier and more robust than standard products
  • Devices are ANSI/BHMA A156.3 - Grade 1
  • UL10C (Fire) Listed

Specifications

Doors and Frames
CECO DOOR and CURRIES StormPro Series Door Assemblies; 6'0" × 6'8" to 8' × 8' for pairs of fire rated doors, 3' × 6'8" to 4' × 8' for single fire rated doors (Requires 4 Thermal Pins)
Hardware
SARGENT FM8700 or 12-FM8700 Exit Device on both leaves or single door applications
Hinges
McKinney SP3386/SP3786 StormPro Tornado Resistant Butt Hinges, McKinney MCK-HG305 Continuous Hinges, Markar HG305 Continuous Hinges
Strikes
659 Top Strike in frame and 653 Bottom Strike furnished standard
Shim Kit
569 Shim Kit furnished standard
Rail sizes as determined by door width
F Rail for 36" door width, J Rail for 37" to 42" door widths, No cutting required for 42" door, G Rail for 43" to 48" door widths, No cutting required for 48" door
Dogging Feature
Hex key dogging available on non fired rated devices only
Electric Options
54- Outside Lever Monitoring Option
Mounting Fasteners
Supplied standard with machine screws and with throughbolts for the latch cases
Top & Bottom Bolt
Stainless steel
Device Centerline from Finished Floor
41" (1041mm) for Standard Applications, 38" (965mm) for elementary schools
Center Case Dimensions
8-3/8" (213mm) × 2-5/8" (67mm)
Projection
Pushbar Neutral - 3" (76mm), Pushbar Depressed - 2-1/8" (54mm)

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

How to Change the Function on a SARGENT ET Lever Trim

Available Model Numbers and Combinations

Model/SKUAttributes
FM8774-24Vx ETMOx 20Dx RH
FM8710x ETMHx 32Dx LHR Exit Only - No Trim, MH Odeon, Satin Stainless Steel,
FM8746x ETEx 03x LH Key unlocks Trim, Trim retracts latch, E Lever,
FM8774-24Vx ETMBx 32Dx LH MB Aventura, Satin Stainless Steel,
FM8746x ETFx 09x LH Key unlocks Trim, Trim retracts latch, F Lever,
FM8774-24Vx ETMBx 32x LHR MB Aventura, Polished Stainless Steel,
FM8710x ETMSx 10Bx RHR Exit Only - No Trim,
FM8740x ETJx 09x LHR Dummy Trim (Lever Rotates), J Lever,
FM8710x ETMVx 32Dx RHR Exit Only - No Trim, Satin Stainless Steel,
FM8774-24Vx ETMIx WSPx RH MI Aventura, White Suede Powder Coat,
FM8774-24Vx ETMWx 10BEx LH MW Aventura,
FM8713x ETMOx 10x LHR Key Locks/Unlocks Control ET,
FM8740x ETMCx 20Dx LHR Dummy Trim (Lever Rotates),
FM8774-24Vx ETMKx 32Dx RH Satin Stainless Steel,
FM8706x ETGx 32Dx LH Key Operates ET, Gulfport Lever, Satin Stainless Steel,
