Best 45HG Offline G Series Mortise Lock

45HG

Cylinder Not Included

Item normally ships out within 2-4 Weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

$1,835.84

40% Off

$3,059.74

Details: Best 45HG Offline G Series Mortise Lock

A highly efficient standalone lock system, the G Series Offline Lock utilizes card reader technology to address the real-life operational needs of residence halls, such as lost cards or room changes. With the G Series Offline Lock, ID cards are encoded with all the information necessary to control door access. The system integrates with virtually any existing database, and allows unsurpassed capabilities in storing and retrieving access activity data. And because the lock itself is offline, individual door access changes can be made quickly and conveniently. Everything about the G Series Offline Lock was designed to think... so you don't have to.

Specifications:

Case
0.095" cold rolled steel, 5 7/8" H × 7/8" D × 4 1/16" W. Steel is zinc dichromate plated for corrosion protection
Faceplate
Brass or bronze material, 8" H × 1 1/4" W × 1/16" T. Lock face automatically adjusts to proper bevel during installation
Strike
Brass, bronze, or stainless steel base material, 4 7/8" × 1 1/4" × 3/32". Fits standard door frame cut out as specified in ANSI A115.1. Universal (non-handed) strike supplied standard with lock
Backset
2 3/4"
Door Thickness
Standard lock configuration designed for doors 1 3/4" thick. Thick door configuration available for doors up to 3" thick (specify thickness when ordering)
Latchbolt
Solid stainless steel, 3/4" throw anti-friction. Reversible without opening case
Deadbolt
Stainless steel, 1" throw
Auxiliary bolt
Stainless steel, non-handed

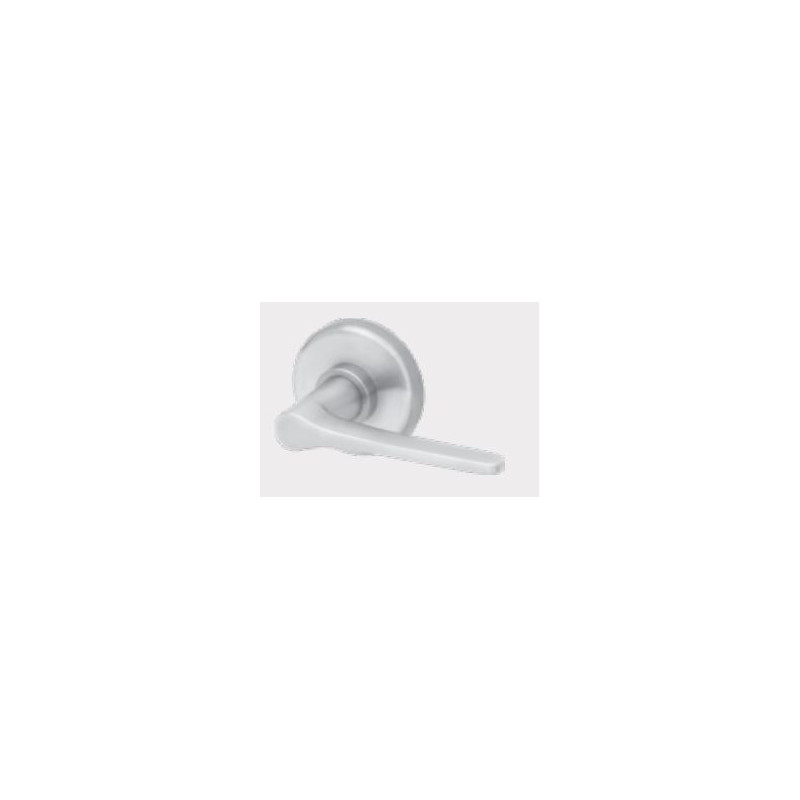

Lever handle
Brass, bronze, or stainless steel base material. Lever styles #3, #14, and #15 return to a minimum of 1/2" of door surface. Lever 12, 16 and 17 do not return
Escutcheon
10 1/2" × 3 3/8" × 1" sloping down to 3/4"

Downloads

Catalog

Available Model Numbers and Combinations

Model/SKUAttributes
45HG626 Satin Chrome
45HG690 Oxidized Satin Bronze
45HG 626AM Satin Chrome (Antimicrobial)
45HG606 Satin Brass
45HG612 Satin Bronze
45HG619 Satin Nickel
45HG605 Bright Brass
45HG611 Bright Bronze
45HG625 Bright Chrome
